Features
2000 W continuous program power capacity
100 mm (4 in) copper voice coil
45 - 1500 Hz response
96 dB sensitivity
FEA optimized Neodymium magnet assembly
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
320 mm (12 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.2 Ω
Nominal Power Handling
1000 W
Continuous Power Handling
2000 W
Sensitivity
96 dB
Frequency Range
45 - 1500 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
25 mm (1 in)
Magnetic Gap Depth
12 mm (0.5 in)
Flux Density
1.2 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
42 Hz
Re
5.1 Ω
Qes
0.21
Qms
3.6
Qts
0.2
Vas
44 dm³ (1.5 ft³)
Sd
531 cm² (82.3 sq²)
η0
1.7 %
Xmax
9 mm
Xvar
10 mm
Mms
119 g
Bl
28 Tm
Le
1.9 mH
EBP
200 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Radial
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
50 dm³ (1.77 ft³)
Recommended Tuning
50 Hz

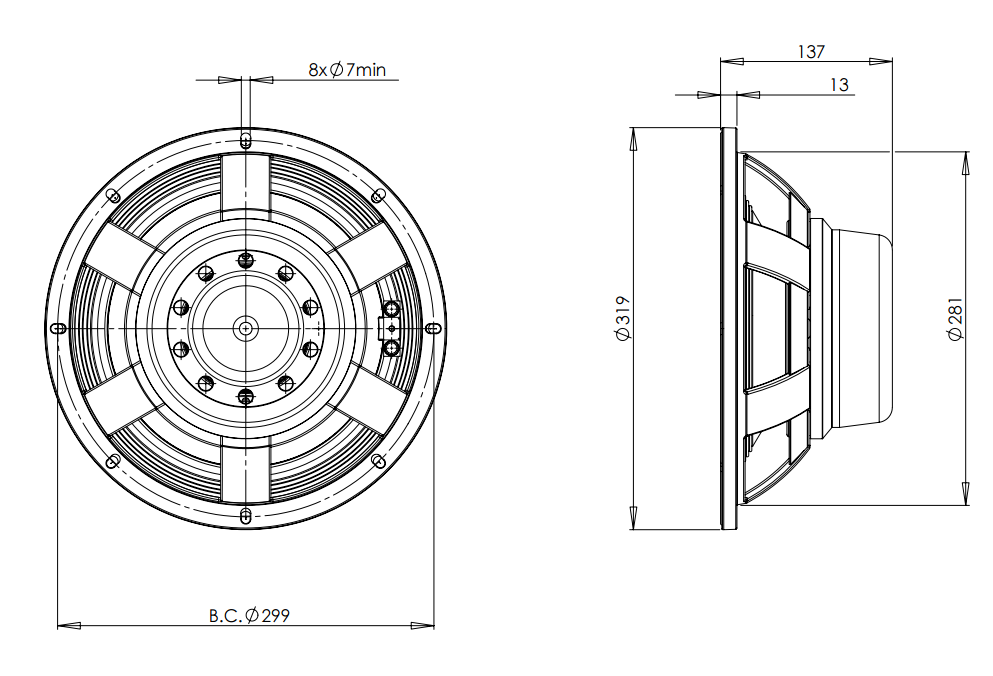

Mounting and Shipping Info
Overall Diameter
319 mm (12.5 in)
Bolt Circle Diameter
299 mm (11.8 in)
Baffle Cutout Diameter
281 mm (11.1 in)
Depth
137 mm (5.4 in)
Flange and Gasket Thickness
13 mm (0.5 in)
Air Volume Occupied by Driver
2.7 dm³ (0.09 ft³)
Net Weight
8.2 kg (18 lb)
Shipping Units
1 pcs
Shipping Weight
9.1 kg (20.06 lb)
Shipping Box
360x360x200 mm (14.17x14.17x7.87 in)
Service Kit
lf Recone Kit
RCK12NW1008
Cone
Basket
Centering Shims
