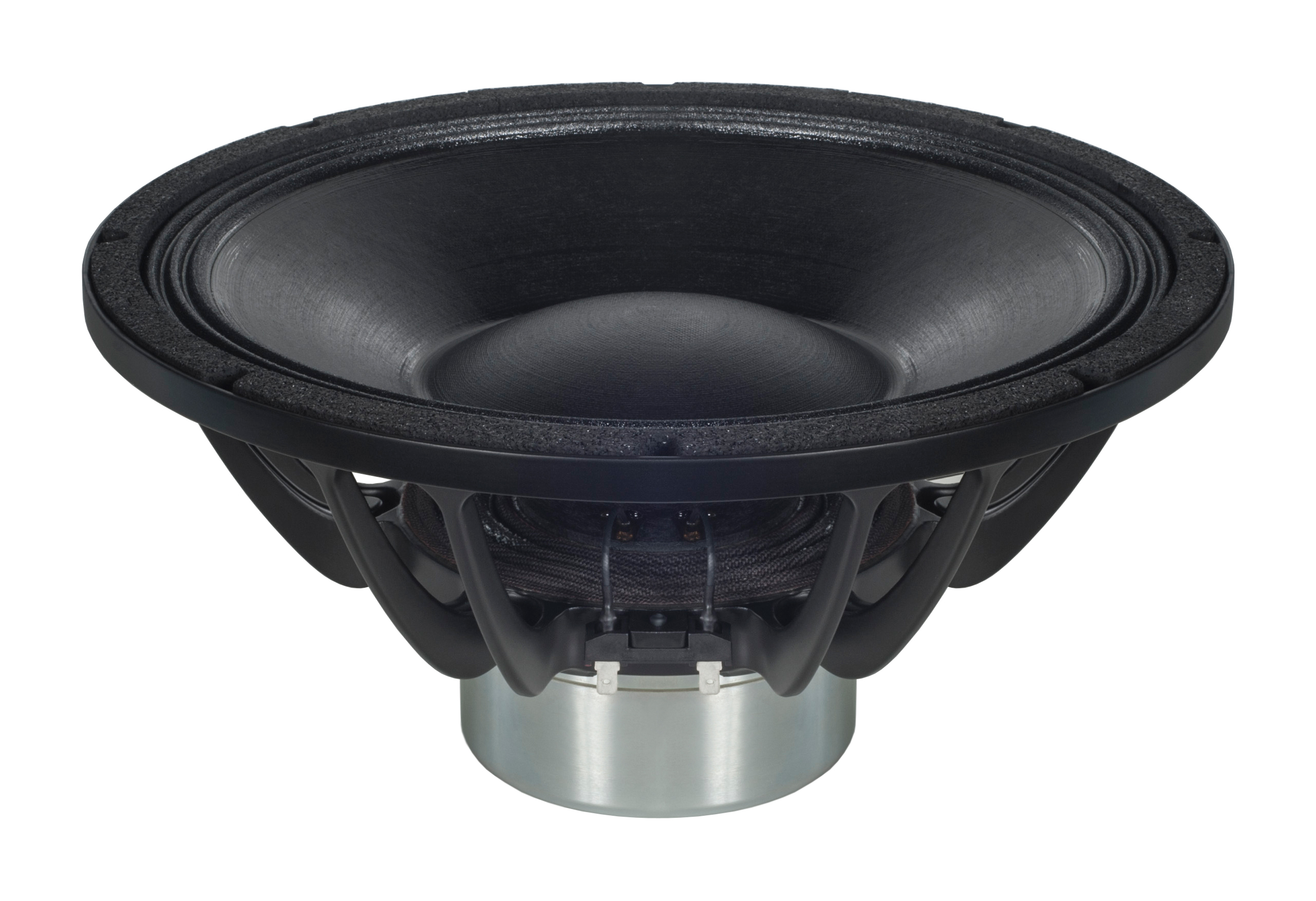

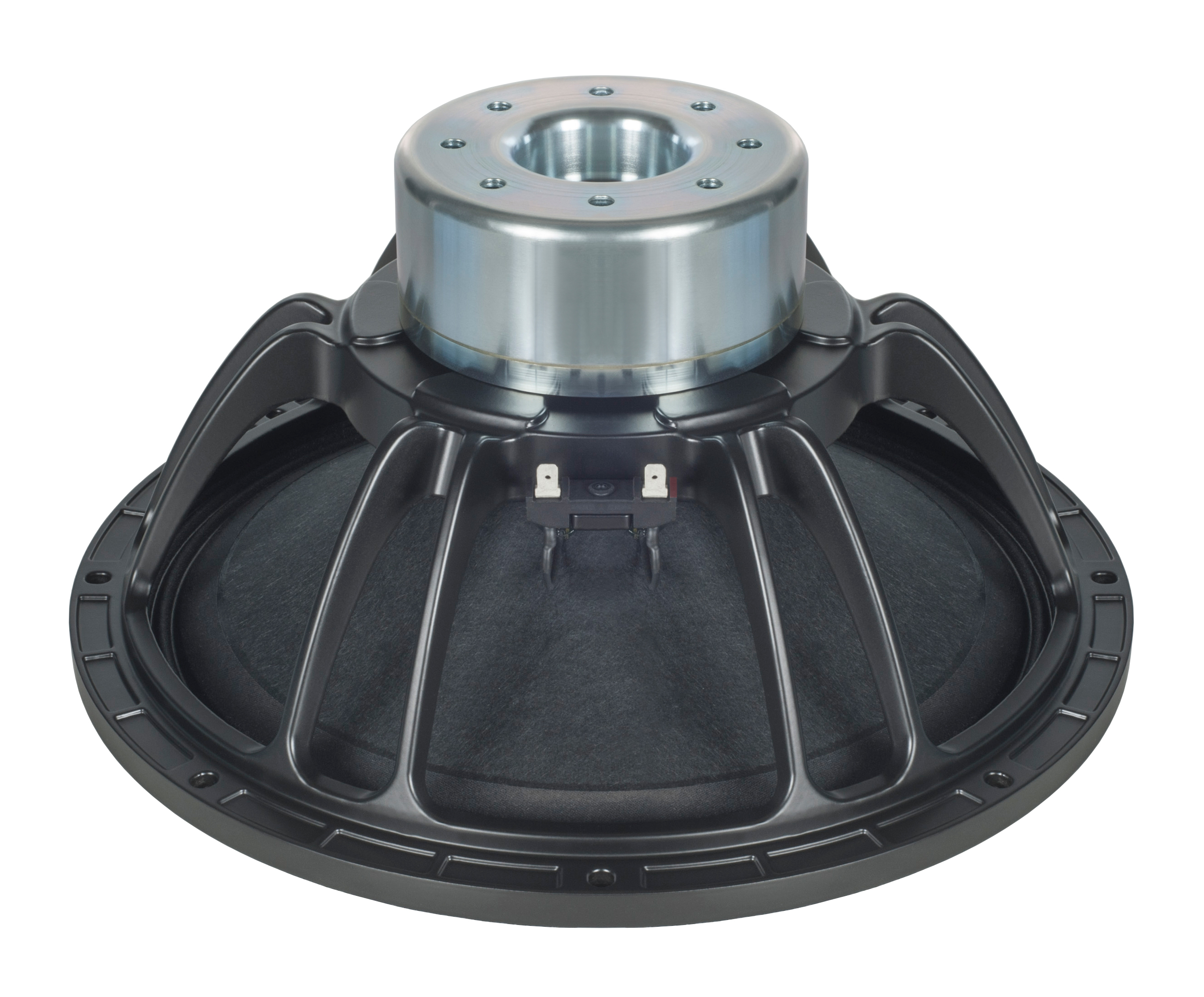

14DS88
NEW
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is less heat, more energy in the gap, higher sensitivity, higher power handling, lower distortion and better overall performance. The 14DS88 features a 27.5mm long, 3.5 inch diameter (88mm) Copper Clad Aluminum Wire voice coil. With a 1400watt AES power rating, 97.3 dB sensitivity, and 11mm of Xvar, this high energy subwoofer is a significant step forward from similar models in the B&C range.
Features
- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminium voice coil
- 45 - 1200 Hz response
- 97.3 dB sensitivity
- Ventilated voice coil gap for reduced power compression
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider for optimized compliance
Specifications
Nominal Diameter
359 mm (14 in)

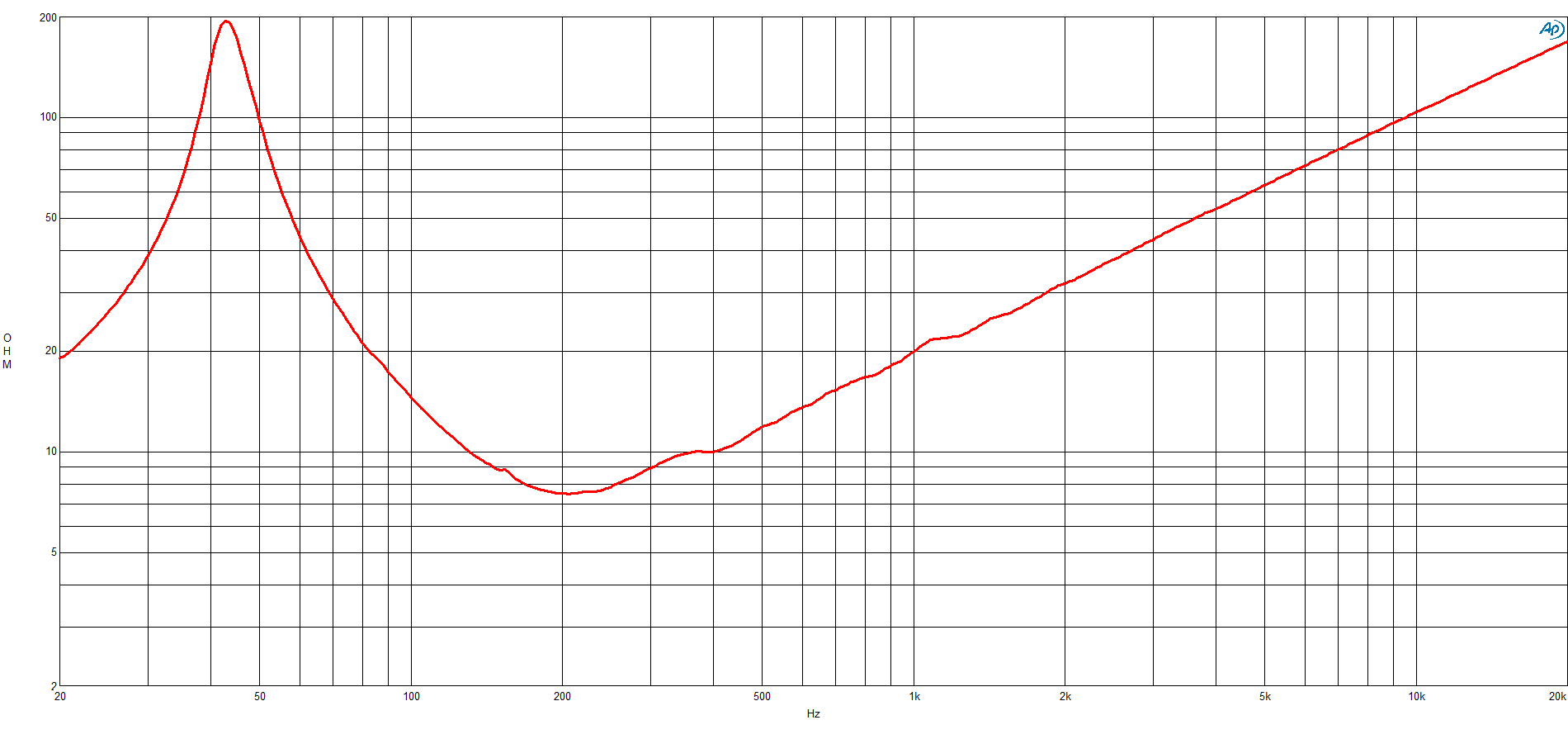

Nominal Impedance
8 Ω
Minimum Impedance
7.4 Ω
Nominal Power Handling
700 W
Continuous Power Handling
1400 W
Sensitivity
97.3 dB

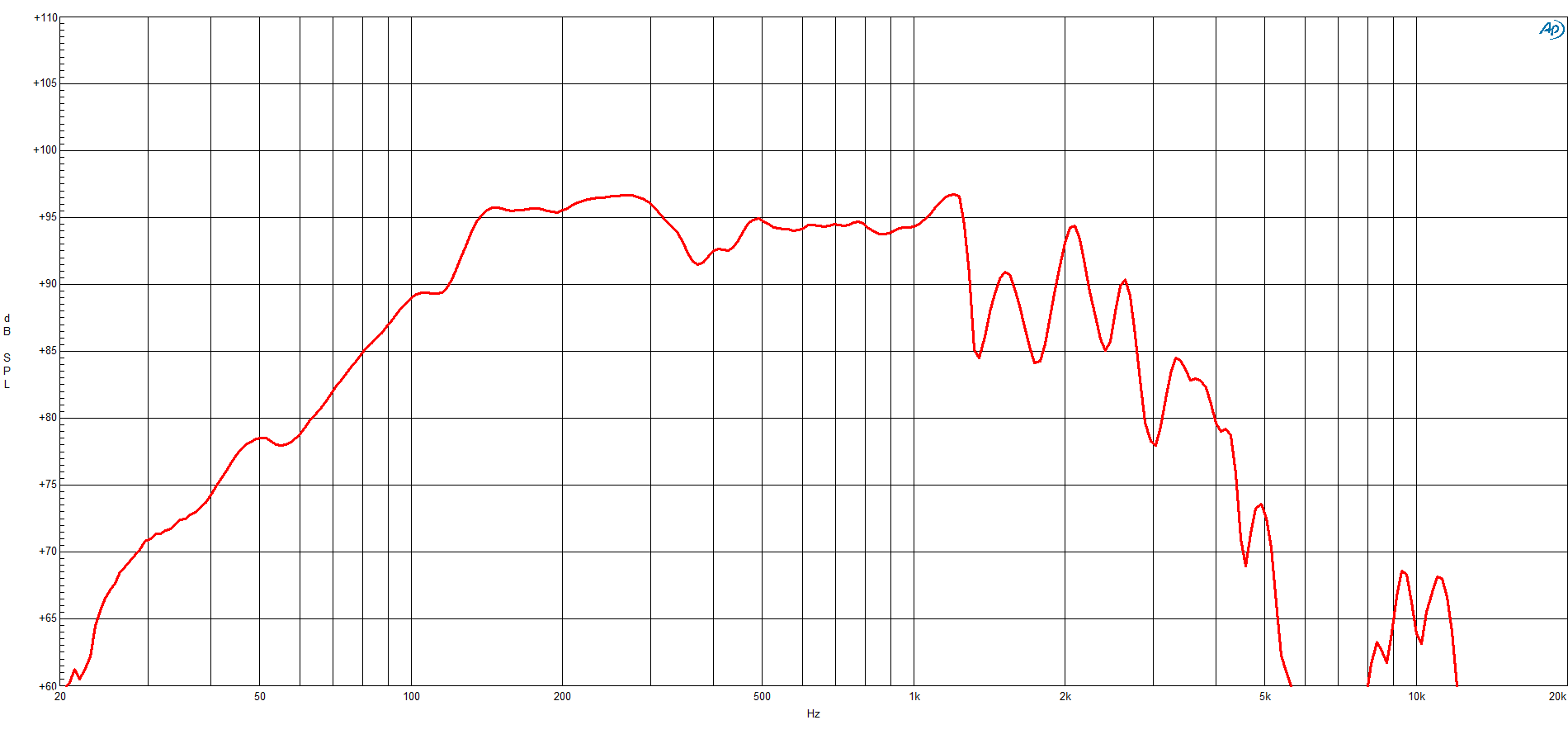

Frequency Range
45 Hz - 1200 Hz
Voice Coil Diameter
88 mm (3.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
27.5 mm (1.08 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.05 T
Parameters
Fs
44 Hz
Re
5.6 Ω
Qes
0.19
Qms
8
Qts
0.18
Vas
55 dm³ (1.94 ft³)
Sd
707 cm² (109.6 in²)
η0
2.4 %
Xmax
11 mm
Xvar
10.8 mm
Mms
170 g
Bl
36.9 Tm
Le
2.05 mH
EBP
232 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Curvilinear
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side

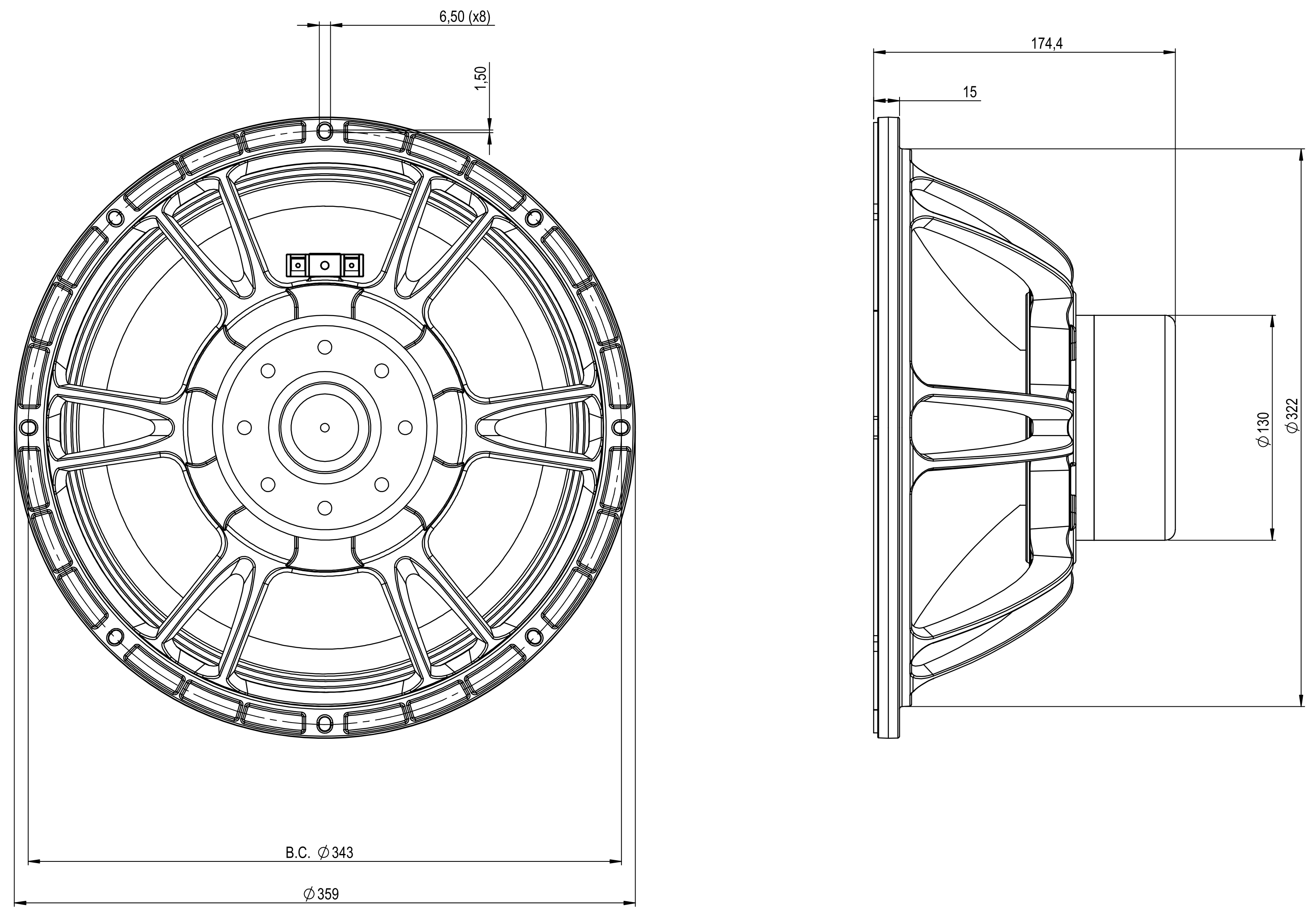

Mounting and Shipping Info
Overall Diameter
360 mm (14.17 in)
Bolt Circle Diameter
342 mm (13.46 in)
Baffle Cutout Diameter
325 mm (12.8 in)
Depth
174.4 mm (6.87 in)
Flange and Gasket Thickness
15 mm (0.59 in)
Air Volume Occupied by Driver
3.5 dm³ (0.12 ft³)
Net Weight
