14NA100
NEW
A four inch voice coil gives the 14NA100 mid-bass higher power handling and longer excursion capabilities, while an inside slug neodymium magnet provides high motor strength and efficiency. This all around performer is perfect for maximum output two way applications, especially thanks to its aluminum demodulating ring which reduces distortion and flattens impedance into the mid frequencies.
Features
1600 W continuous program power capacity
100 mm (4 in) aluminum voice coil
45 - 2000 Hz response
99 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
359 mm (14 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.2 Ω
Nominal Power Handling
800 W
Continuous Power Handling
1600 W
Sensitivity
99 dB
Frequency Range
45 - 2000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
23 mm (0.91 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.15 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
43 Hz
Re
5.1 Ω
Qes
0.24
Qms
5.6
Qts
0.23
Vas
99.5 dm³ (3.51 ft³)
Sd
707 cm² (109.59 sq²)
η0
3.1 %
Xmax
8.8 mm
Xvar
8.5 mm
Mms
96.5 g
Bl
23.5 Tm
Le
0.74 mH
EBP
179 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Radial
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
60 dm³ (2.12 ft³)
Recommended Tuning
50 Hz

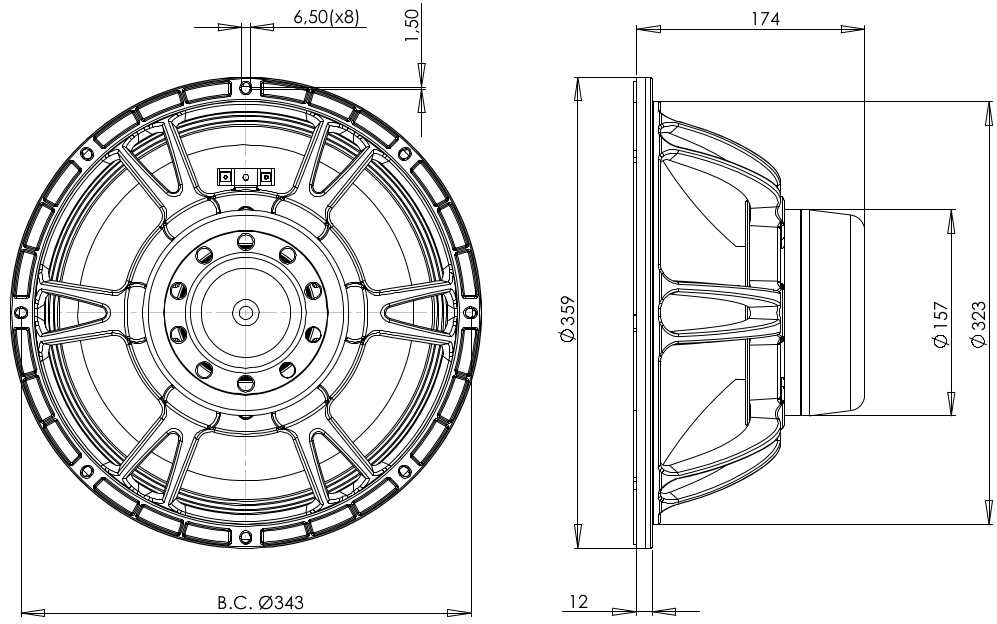

Mounting and Shipping Info
Overall Diameter
359 mm (14.13 in)
Bolt Circle Diameter
343 mm (13.5 in)
Baffle Cutout Diameter
324 mm (12.76 in)
Depth
176 mm (6.93 in)
Flange and Gasket Thickness
12 mm (0.47 in)
Air Volume Occupied by Driver
3.5 dm³ (0.12 ft³)
Net Weight
8.3 kg (18.3 lb)
Shipping Units
1 pcs
Shipping Weight
9.6 kg (21.16 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK14NA1008
Cone
Basket
Centering Shims
