15DS100
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is less heat, more energy in the gap, higher sensitivity, higher power handling, lower distortion and better overall performance. The 15DS100 features a 37mm long, 4 inch diameter (100mm) Copper Clad Aluminum Wire voice coil. With a 1500watt AES power rating, 96.8 dB sensitivity, and over 14.0mm of Xvar, this high energy subwoofer is a significant step forward from similar models in the B&C range.
Features
3000 W continuous program power capacity
100 mm (4 in) four layer aluminium voice coil
39 - 1000 Hz response
96.8 dB sensitivity
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminium demodulating ring for very low distortion
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
4 Ω
Minimum Impedance
3.4 Ω
Nominal Power Handling
1500 W
Continuous Power Handling
3000 W
Sensitivity
96.8 dB
Frequency Range
39 Hz - 1000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
34 mm (1.34 in)
Magnetic Gap Depth
16 mm (0.63 in)
Flux Density
0.7 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
39 Hz
Re
2.4 Ω
Qes
0.23
Qms
8.16
Qts
0.23
Vas
73 dm³ (2.58 ft³)
Sd
855 cm² (132.53 sq²)
η0
1.8 %
Xmax
13 mm
Xvar
14 mm
Mms
233 g
Bl
24.3 Tm
Le
2.8 mH
EBP
170 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Radial
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
120 dm³ (4.24 ft³)
Recommended Tuning
40 Hz

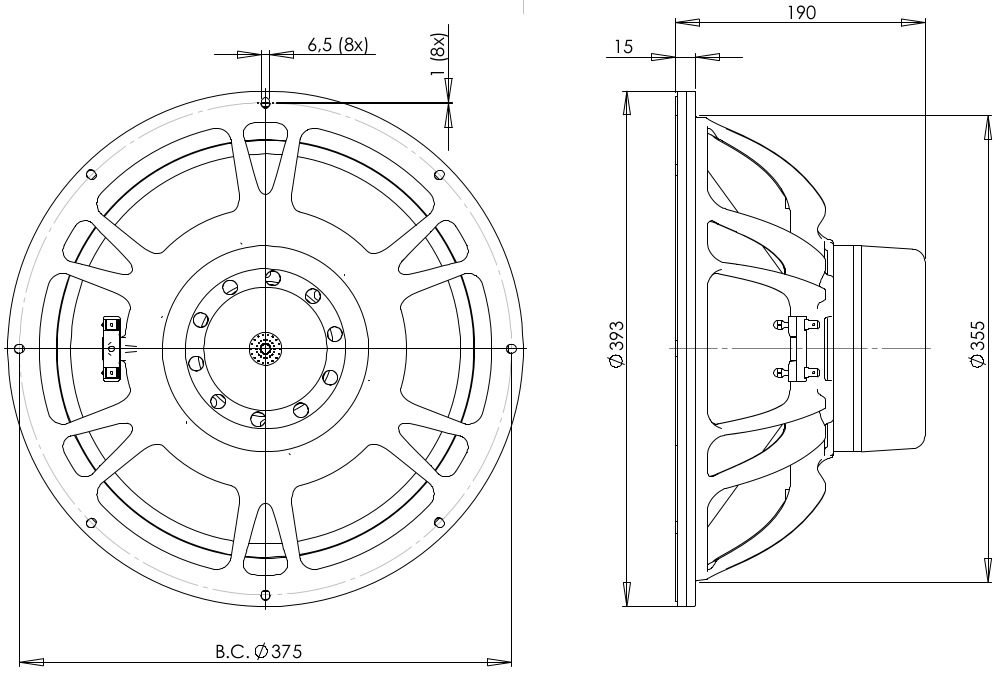

Mounting and Shipping Info
Overall Diameter
393 mm (15.47 in)
Bolt Circle Diameter
374 mm (16.7 in)
Baffle Cutout Diameter
353 mm (13.9 in)
Depth
190 mm (7.5 in)
Flange and Gasket Thickness
16 mm (0.63 in)
Air Volume Occupied by Driver
6 dm³ (0.21 ft³)
Net Weight
9.55 kg (21.05 lb)
Shipping Units
1 pcs
Shipping Weight
10.85 kg (23.92 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15DS1004
Cone
Gasket
Centering Shims
