Features
800 W continuous program power capacity
76 mm (3 in) copper voice coil
40 - 3000 Hz response
98.5 dB sensitivity
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.3 Ω
Nominal Power Handling
400 W
Continuous Power Handling
800 W
Sensitivity
98.5 dB
Frequency Range
40 Hz - 3000 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
19 mm (0.75 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.15 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
42 Hz
Re
5.1 Ω
Qes
0.34
Qms
7.9
Qts
0.33
Vas
135 dm³ (4.8 ft³)
Sd
855 cm² (132.5 sq²)
η0
2.9 %
Xmax
7 mm
Xvar
8.5 mm
Mms
108 g
Bl
21 Tm
Le
1.3 mH
EBP
124 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Neodymium Inside Slug
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
100 dm³ (3.53 ft³)
Recommended Tuning
47 Hz
Recommended Loading
Vented Box

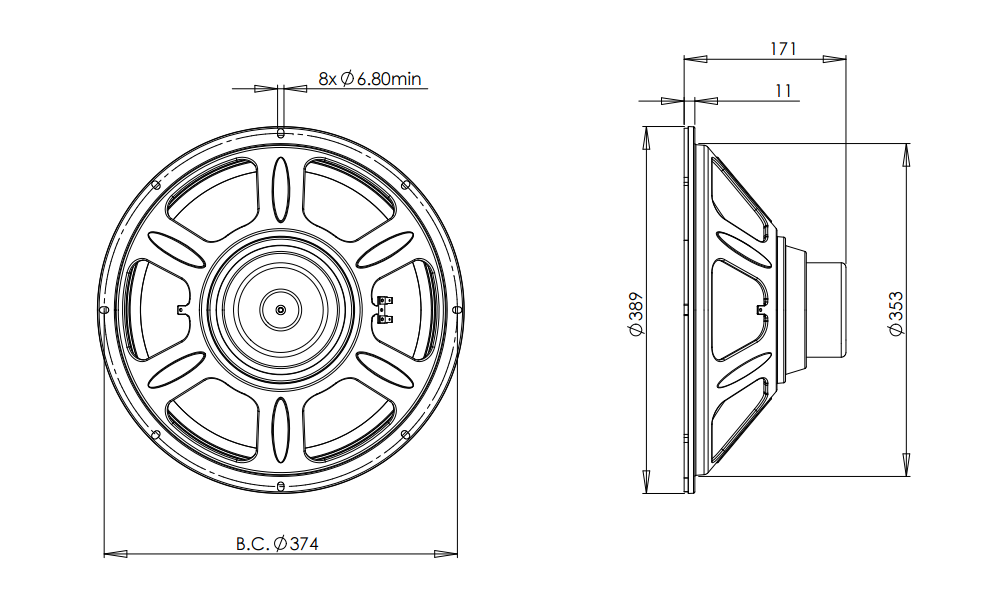

Mounting and Shipping Info
Overall Diameter
389 mm (15.31 in)
Bolt Circle Diameter
374 mm (14.72 in)
Baffle Cutout Diameter
353 mm (13.9 in)
Depth
171 mm (6.73 in)
Flange and Gasket Thickness
11 mm (0.43 in)
Air Volume Occupied by Driver
4.4 dm³ (0.15 ft³)
Net Weight
3.8 kg (8.38 lb)
Shipping Units
1 pcs
Shipping Weight
5.1 kg (11.24 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15CL768
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
