Features
1600 W continuous program power capacity
100 mm (4 in) aluminium voice coil
45 - 2000 Hz response
98 dB sensitivity
FEA optimized Neodymium magnet assembly
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Aluminum demodulating rings allows a very low distortion figure
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.6 Ω
Nominal Power Handling
800 W
Continuous Power Handling
1600 W
Sensitivity
98 dB
Frequency Range
45 - 2000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
23 mm (0.9 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.2 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
47 Hz
Re
5.1 Ω
Qes
0.29
Qms
6.1
Qts
0.28
Vas
88 dm³ (3.1 ft³)
Sd
855 cm² (132.5 sq²)
η0
2.9 %
Xmax
10 mm
Xvar
9 mm
Mms
136 g
Bl
26.3 Tm
Le
1.2 mH
EBP
162 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Neodymium Inside Slug
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
80 dm³ (2.82 ft³)
Recommended Tuning
50 Hz

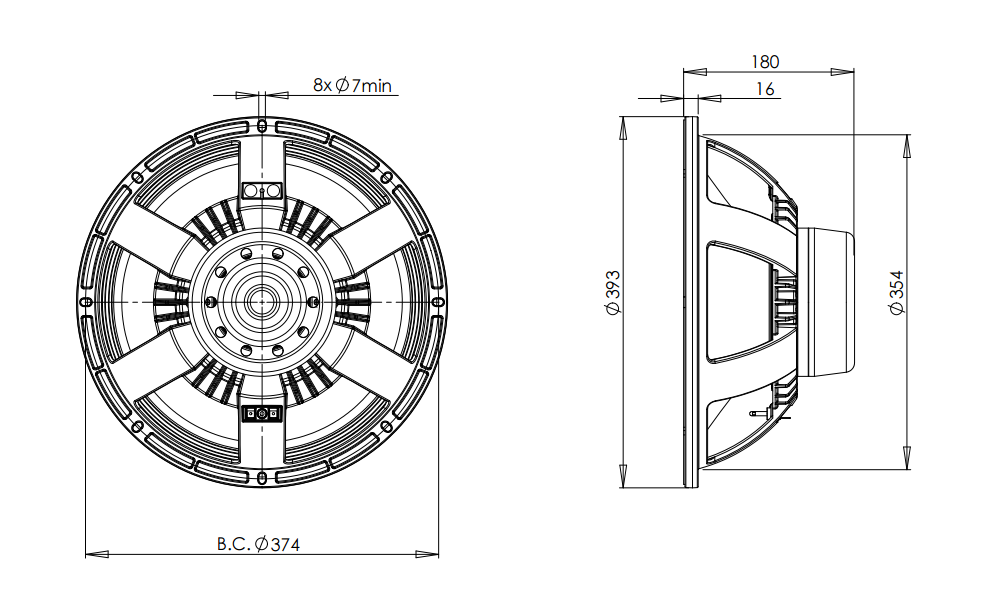

Mounting and Shipping Info
Overall Diameter
393 mm (15.5 in)
Bolt Circle Diameter
374 mm (14.7 in)
Baffle Cutout Diameter
354 mm (13.9 in)
Depth
180 mm (7.09 in)
Flange and Gasket Thickness
16 mm (0.62 in)
Air Volume Occupied by Driver
6 dm³ (0.21 ft³)
Net Weight
8.6 kg (18.96 lb)
Shipping Units
1 pcs
Shipping Weight
9.9 kg (21.83 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15NA1008
Cone
Basket
Centering Shims
