Features
800 W continuous program power capacity
76 mm (3 in) copper voice coil
40 - 2000 Hz response
100 dB sensitivity
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.2 Ω
Nominal Power Handling
400 W
Continuous Power Handling
800 W
Sensitivity
100 dB
Frequency Range
40 Hz - 2000 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
16 mm (0.62 in)
Magnetic Gap Depth
11 mm (0.4 in)
Flux Density
1.15 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
42 Hz
Re
5 Ω
Qes
0.26
Qms
5.9
Qts
0.25
Vas
164 dm³ (5.8 ft³)
Sd
855 cm² (132.5 sq²)
η0
4.5 %
Xmax
5 mm
Xvar
8 mm
Mms
88 g
Bl
22.1 Tm
Le
1.3 mH
EBP
162 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
100 dm³ (3.53 ft³)
Recommended Tuning
50 Hz

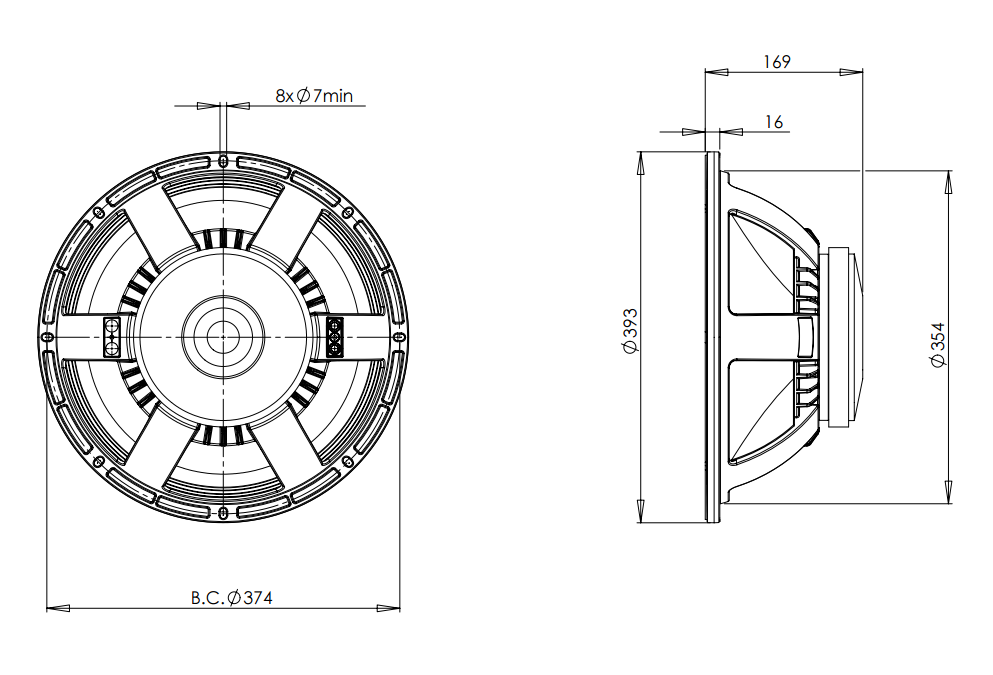

Mounting and Shipping Info
Overall Diameter
393 mm (15.5 in)
Bolt Circle Diameter
374 mm (14.7 in)
Baffle Cutout Diameter
354 mm (13.9 in)
Depth
169 mm (6.65 in)
Flange and Gasket Thickness
16 mm (0.62 in)
Air Volume Occupied by Driver
5.2 dm³ (0.18 ft³)
Net Weight
8.6 kg (18.96 lb)
Shipping Units
1 pcs
Shipping Weight
9.9 kg (21.83 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15PLB768
Cone
Gasket
Centering Shims
