Features
1400 W continuous program power capacity
100 mm (4 in) copper voice coil
40- 2000 Hz response
97 dB sensitivity
Double silicone spider with optimized compliance
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.4 Ω
Nominal Power Handling
700 W
Continuous Power Handling
1400 W
Sensitivity
97 dB
Frequency Range
40 - 2000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
21 mm (0.83 in)
Magnetic Gap Depth
9 mm (0.35 in)
Flux Density
1.15 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
39 Hz
Re
5.2 Ω
Qes
0.3
Qms
6.5
Qts
0.29
Vas
110 dm³ (3.8 ft³)
Sd
855 cm² (132.5 sq²)
η0
2.1 %
Xmax
8 mm
Xvar
6.5 mm
Mms
154 g
Bl
25.8 Tm
Le
2 mH
EBP
130 Hz
Design
Surround Shape
Double Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Double Silicone
Pole Design
Straight Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
105 dm³ (3.7 ft³)
Recommended Tuning
39 Hz

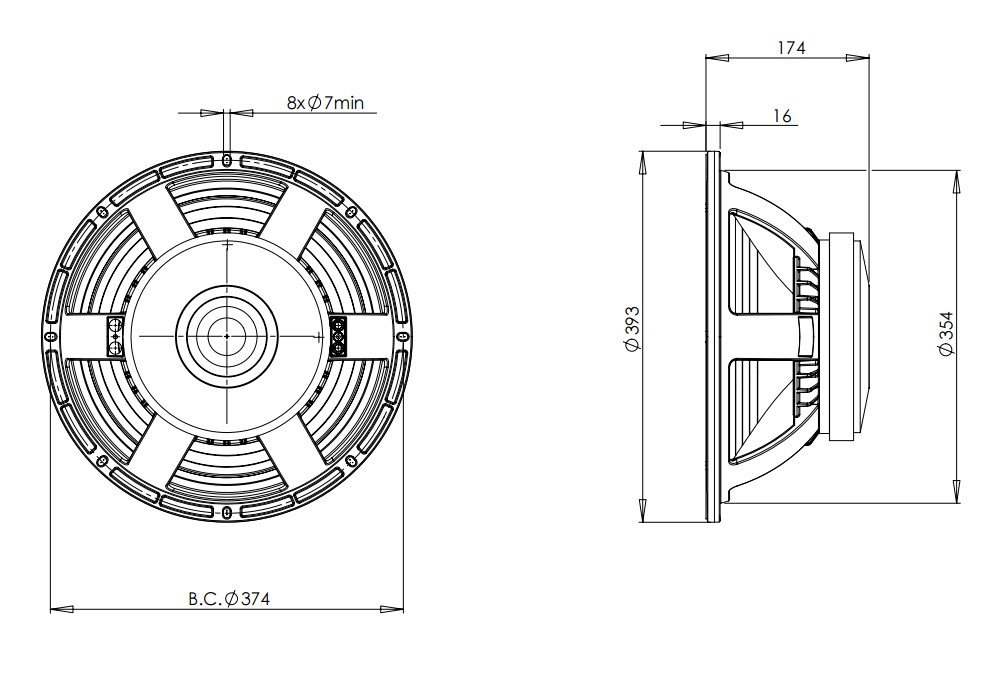

Mounting and Shipping Info
Overall Diameter
393 mm (15.5 in)
Bolt Circle Diameter
374 mm (14.7 in)
Baffle Cutout Diameter
354 mm (13.9 in)
Depth
174 mm (6.85 in)
Flange and Gasket Thickness
16 mm (0.63 in)
Air Volume Occupied by Driver
5.2 dm³ (0.18 ft³)
Net Weight
11.6 kg (25.57 lb)
Shipping Units
1 pcs
Shipping Weight
12.9 kg (28.44 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15PZB1008
Cone
Basket
Centering Shims
