Features
200 W continuous program power capacity
44 mm (1.7 in) copper voice coil
63 - 6000 Hz response
92 dB sensitivity
Specifications
Nominal Diameter
127 mm (5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Nominal Power Handling
100 W
Continuous Power Handling
200 W
Sensitivity
92 dB
Frequency Range
63 - 6000 Hz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Copper
Former Material
Kapton
Winding Depth
9 mm (0.35 in)
Magnetic Gap Depth
6 mm (0.25 in)
Flux Density
1.1 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
63 Hz
Re
5.8 Ω
Qes
0.3
Qms
10
Qts
0.27
Vas
6.3 dm³ (0.22 ft³)
Sd
95 cm² (14.7 sq²)
η0
0.55 %
Xmax
3 mm
Xvar
5 mm
Mms
12 g
Bl
10 Tm
Le
0.8 mH
EBP
210 Hz
Design
Surround Shape
Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
5 dm³ (0.17 ft³)
Recommended Tuning
70 Hz

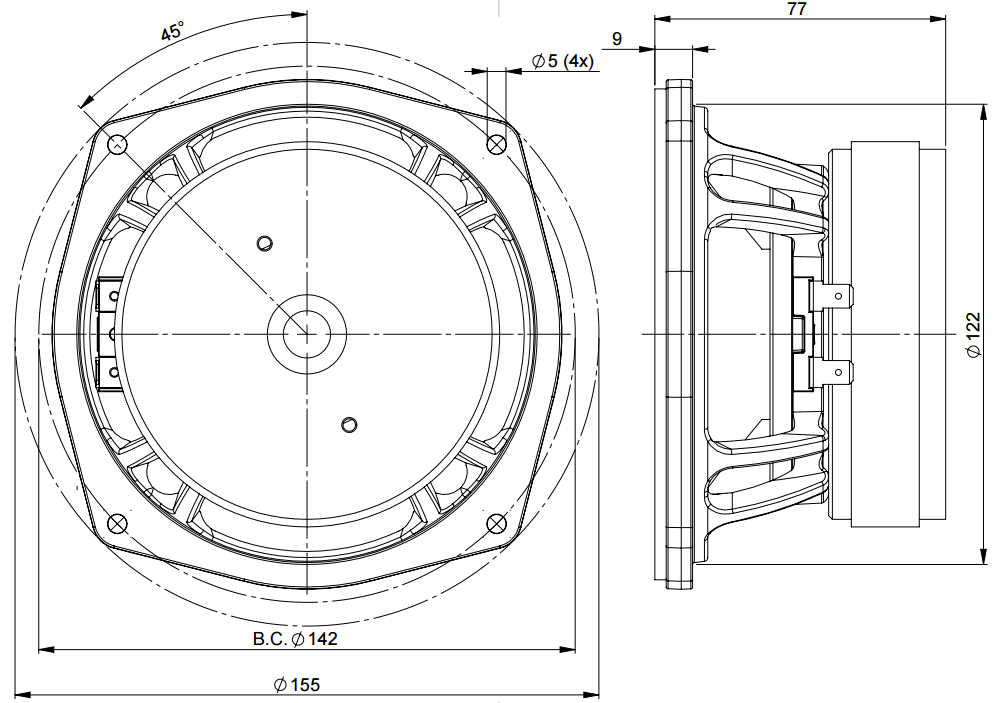

Mounting and Shipping Info
Overall Diameter
155 mm (6.1 in)
Bolt Circle Diameter
142 mm (5.6 in)
Baffle Cutout Diameter
122 mm (4.8 in)
Depth
77 mm (3.03 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Air Volume Occupied by Driver
0.5 dm³ (0.02 ft³)
Net Weight
1.6 kg (3.53 lb)
Shipping Units
1 pcs
Shipping Weight
1.8 kg (3.97 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK005FG448
Cone
Basket
Centering Shims
