6MBX44
The MBX series mid-bass woofers from B&C Speakers offer acoustic designers a new range of high efficiency, wide bandwidth alternatives that are not currently available in the B&C range. These full-featured transducers incorporate lightweight neodymium motors, inside/outside wound copper clad aluminum wire voice coils, weatherproof impregnated paper cones, and a symmetrical inductance profile. The MBX Series is especially well suited for two-way loudspeaker enclosures.
Features
400 W continuous program power capacity
44 mm (1.7 in) aluminium voice coil
115 - 5000 Hz response
98 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Aluminium ring allows a very low distortion figure
Specifications
Nominal Diameter
170 mm (6.5 in)
Nominal Impedance
16 Ω
Minimum Impedance
11.9 Ω
Nominal Power Handling
200 W
Continuous Power Handling
400 W
Sensitivity
98 dB
Frequency Range
115 Hz - 5000 Hz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
10 mm (0.37 in)
Magnetic Gap Depth
6 mm (0.25 in)
Flux Density
1.55 T
Woofer Cone Treatment
Waterproof Impregnated Cone
Parameters
Fs
115 Hz
Re
10.4 Ω
Qes
0.41
Qms
2.9
Qts
0.35
Vas
4 dm³ (0.14 ft³)
Sd
132 cm² (20.46 sq²)
η0
1.4 %
Xmax
3.5 mm
Xvar
3 mm
Mms
12 g
Bl
14.7 Tm
Le
0.34 mH
EBP
280 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Neodymium Ring
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
Waterproof Impregnated Cone
Recommended Enclosure
3 dm³ (0.11 ft³)
Recommended Tuning
120 Hz

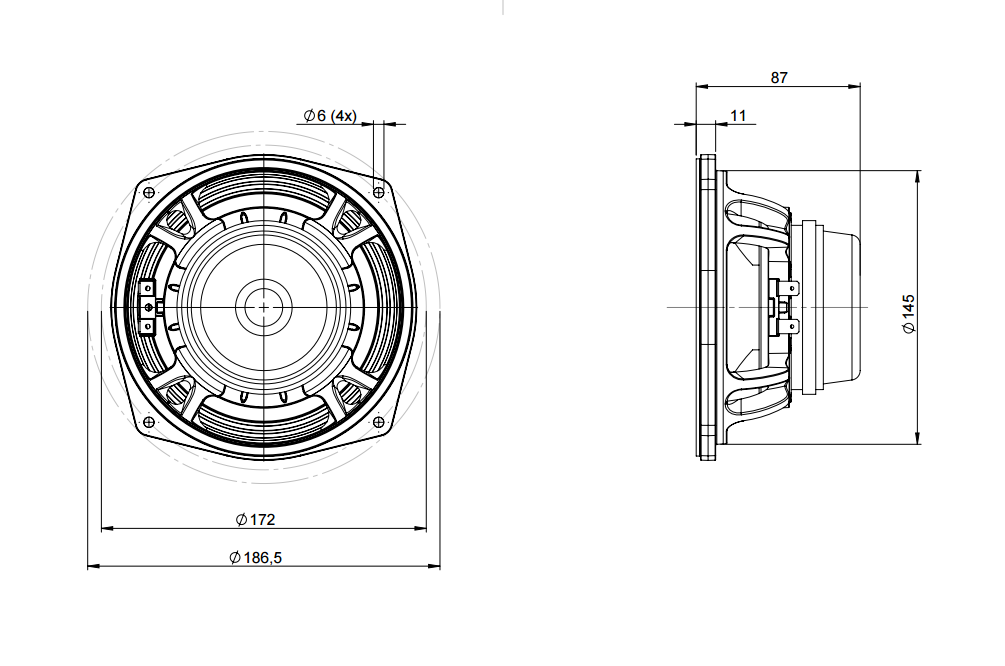

Mounting and Shipping Info
Overall Diameter
187 mm (7.36 in)
Bolt Circle Diameter
172 mm (6.7 in)
Baffle Cutout Diameter
145 mm (5.7 in)
Depth
87 mm (3.43 in)
Flange and Gasket Thickness
11 mm (0.4 in)
Air Volume Occupied by Driver
0.6 dm³ (0.02 ft³)
Net Weight
1.59 kg (3.51 lb)
Shipping Units
1 pcs
Shipping Weight
1.79 kg (3.95 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06MBX4416
Cone
Gasket
Centering Shims
