6CLA51
6.5 inch
NEW
The 6CLA51 are one of the more recent additions to the cost effective and popular CL Series series of neodymium woofers. Featuring aluminum voice coils, the 6CLA51 are a perfect fit for low-cost line array or point-source applications.
Features
- 500 W continuous program power capacity
- 51 mm (2 in) aluminium voice coil
- 100 - 4000 Hz response
- 94.5 dB sensitivity
Specifications
Nominal Diameter
170 mm (6.5 in)

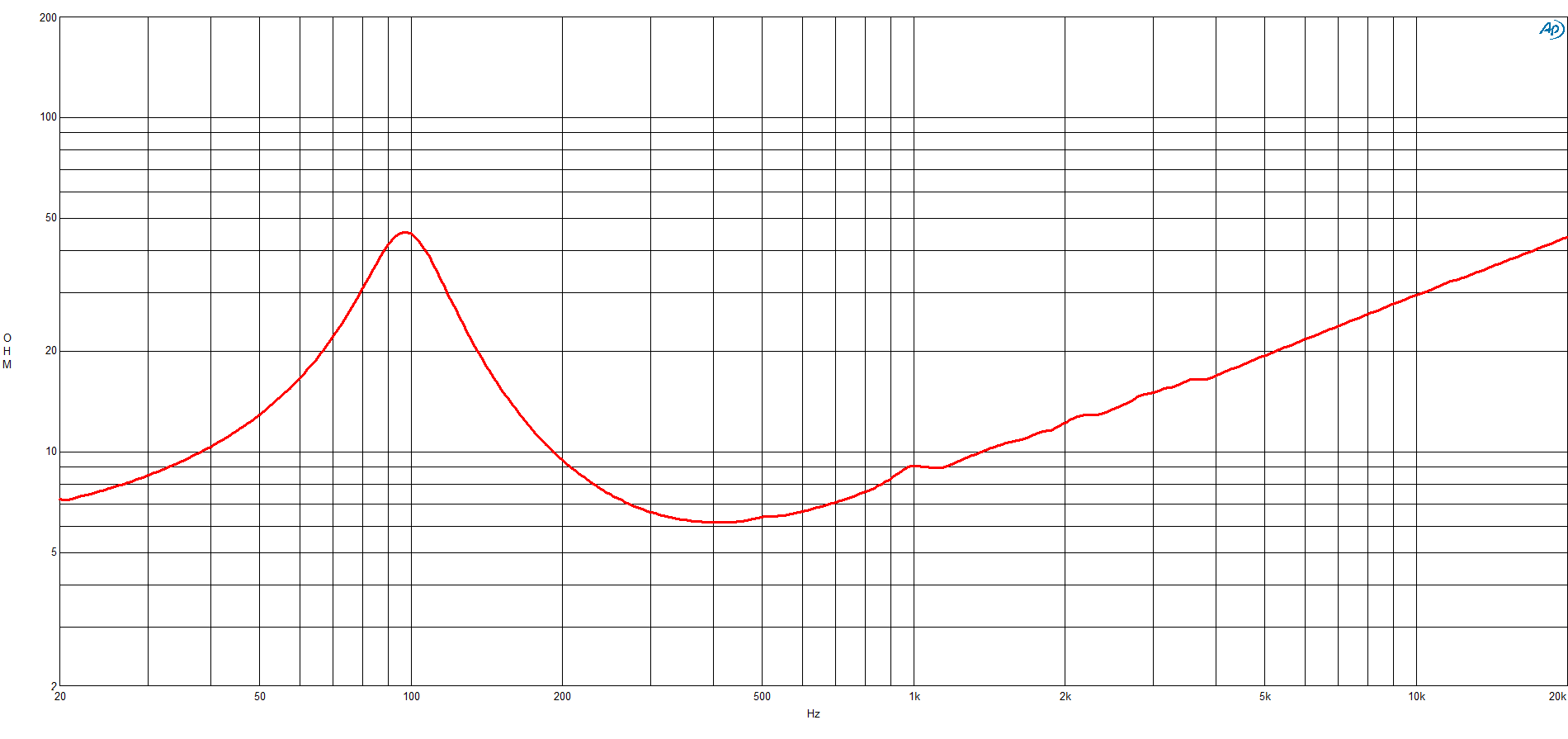

Nominal Impedance
8 Ω
Minimum Impedance
6.1 Ω
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Sensitivity
94.5 dB

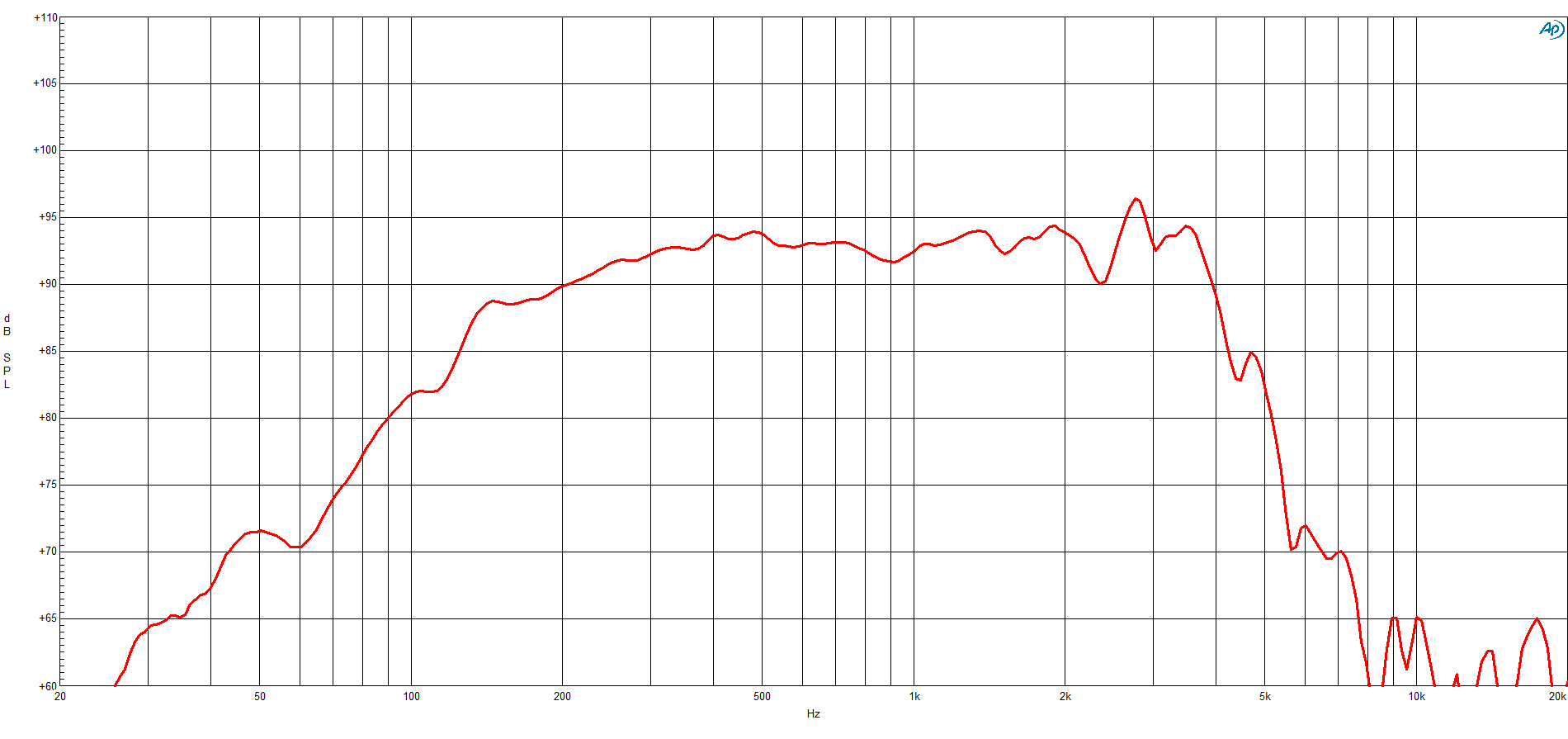

Frequency Range
100 Hz - 4000 Hz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Former Material
Polyimide
Winding Depth
13.5 mm (0.53 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
1.05 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
96 Hz
Re
5 Ω
Qes
0.36
Qms
2.9
Qts
0.32
Vas
4.3 dm³ (0.13 ft³)
Sd
132 cm² (20.5 in²)
η0
1.1 %
Xmax
4.8 mm
Xvar
4 mm
Mms
15 g
Bl
11.4 Tm
Le
0.9 mH
EBP
267 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Radial
Magnet Material
Neodymium Inside Slug
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side

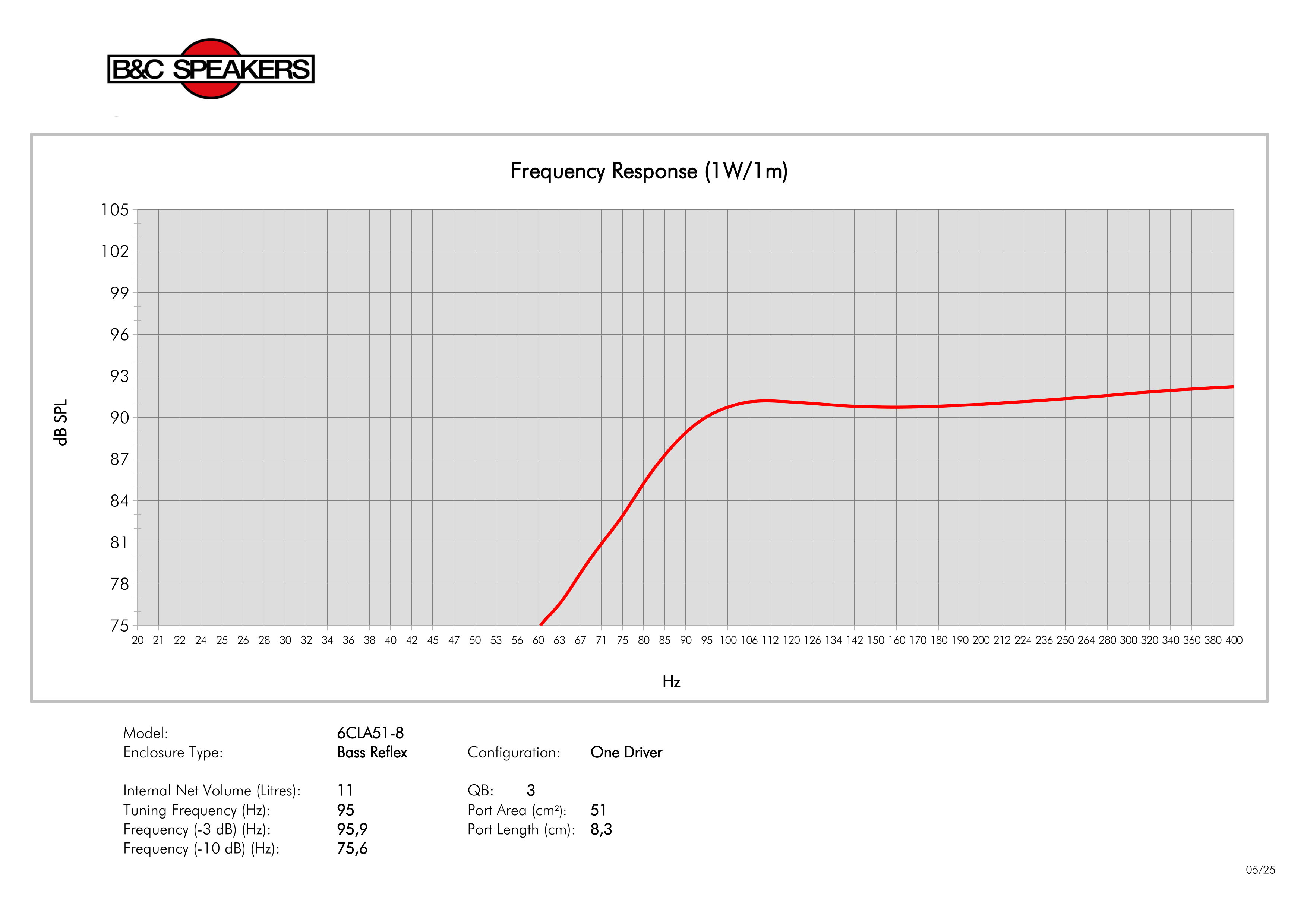

Recommended Enclosure
11 dm³ (0.39 ft³)
Recommended Tuning
95 Hz
Recommended Loading
Vented Box
Mounting and Shipping Info
Overall Diameter
180 mm (7.09 in)
Bolt Circle Diameter
165 mm (6.5 in)
Baffle Cutout Diameter
146 mm (5.75 in)
Depth
80 mm (4.45 in)
Flange and Gasket Thickness
7 mm (0.28 in)
Net Weight
1.2 kg (2.65 lb)
Shipping Units
1 pcs
Shipping Weight
1.45 kg (3.2 lb)
Shipping Box
