Features
400 W continuous program power capacity
44 mm (1.7 in) aluminium voice coil
150 - 6000 Hz response
96.5 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Aluminium demodulating ring for very low distortion
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
170 mm (6.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.5 Ω
Nominal Power Handling
200 W
Continuous Power Handling
400 W
Sensitivity
96.5 dB
Frequency Range
150 Hz - 6000 Hz
Voice Coil Diameter
44 mm (1.7 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
10 mm (0.37 in)
Magnetic Gap Depth
6 mm (0.25 in)
Flux Density
1.45 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
140 Hz
Re
5.4 Ω
Qes
0.46
Qms
2.8
Qts
0.4
Vas
2.7 dm³ (0.09 ft³)
Sd
132 cm² (20.5 sq²)
η0
1.6 %
Xmax
2.5 mm
Xvar
3 mm
Mms
11 g
Bl
11 Tm
Le
0.47 mH
EBP
304 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Neodymium Ring
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side

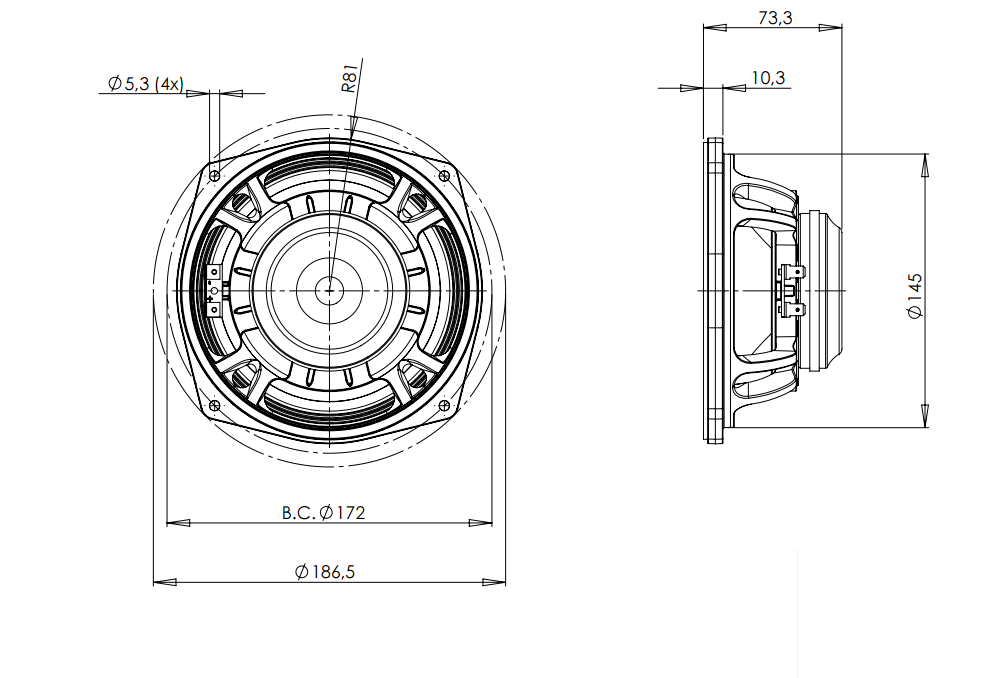

Mounting and Shipping Info
Overall Diameter
187 mm (7.4 in)
Bolt Circle Diameter
172 mm (6.7 in)
Baffle Cutout Diameter
145 mm (5.7 in)
Depth
73 mm (2.9 in)
Flange and Gasket Thickness
11 mm (0.4 in)
Air Volume Occupied by Driver
0.6 dm³ (0.02 ft³)
Net Weight
1 kg (1.2 lb)
Shipping Units
1 pcs
Shipping Weight
1.2 kg (2.65 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06MDN448
Cone
Gasket
Dust Cap
Wooterprof Treatment
Centering Shims
