Features
240 W continuous program power capacity
38 mm (1.5 in) aluminium voice coil
150 - 8000 Hz response
99 dB sensitivity
Specifications
Nominal Diameter
170 mm (6.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6 Ω
Nominal Power Handling
120 W
Continuous Power Handling
240 W
Sensitivity
99 dB
Frequency Range
150 Hz - 8000 Hz
Voice Coil Diameter
38 mm (1.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
7 mm (0.28 in)
Magnetic Gap Depth
6 mm (0.24 in)
Flux Density
1.4 T
Woofer Cone Treatment
None
Parameters
Fs
126 Hz
Re
5.2 Ω
Qes
0.39
Qms
4.6
Qts
0.36
Vas
6 dm³ (0.21 ft³)
Sd
132 cm² (20.46 sq²)
η0
3 %
Xmax
2.5 mm
Xvar
1.5 mm
Mms
6 g
Bl
8.2 Tm
Le
0.6 mH
EBP
323 Hz
Design
Surround Shape
Flat
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
None

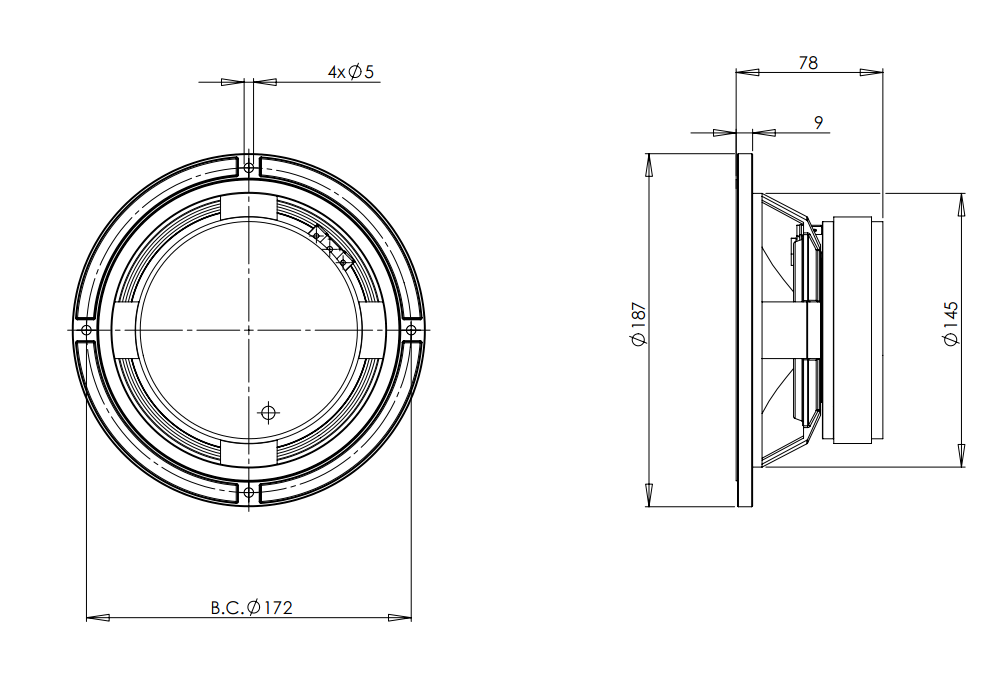

Mounting and Shipping Info
Overall Diameter
187 mm (7.36 in)
Bolt Circle Diameter
172 mm (6.77 in)
Baffle Cutout Diameter
145 mm (5.71 in)
Depth
78 mm (3.07 in)
Flange and Gasket Thickness
11 mm (0.43 in)
Air Volume Occupied by Driver
0.8 dm³ (0.03 ft³)
Net Weight
2.35 kg (5.18 lb)
Shipping Units
1 pcs
Shipping Weight
2.55 kg (5.62 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06PEV138
Cone
Gasket
Centering Shims
