Features
300W continuous power capacity
38 mm (1.5 in) aluminium voice coil
75 - 5000 Hz frequency resposnse
94 dB sensitivity
Specifications
Nominal Diameter
170 mm (6.5 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.6 Ω
Nominal Power Handling
150 W
Continuous Power Handling
300 W
Sensitivity
94 dB
Frequency Range
75 Hz - 5000 Hz
Voice Coil Diameter
38 mm (1.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
12 mm (0.49 in)
Magnetic Gap Depth
6 mm (0.24 in)
Flux Density
1.4 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
75 Hz
Re
5.4 Ω
Qes
0.31
Qms
11.7
Qts
0.3
Vas
8 dm³ (0.28 ft³)
Sd
132 cm² (20.46 sq²)
η0
1 %
Xmax
6 mm
Xvar
7.5 mm
Mms
14 g
Bl
10.8 Tm
Le
0.6 mH
EBP
242 Hz
Design
Surround Shape
Roll
Cone Shape
Radial
Magnet Material
Ferrite
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
9 dm³ (0.32 ft³)
Recommended Tuning
80 Hz

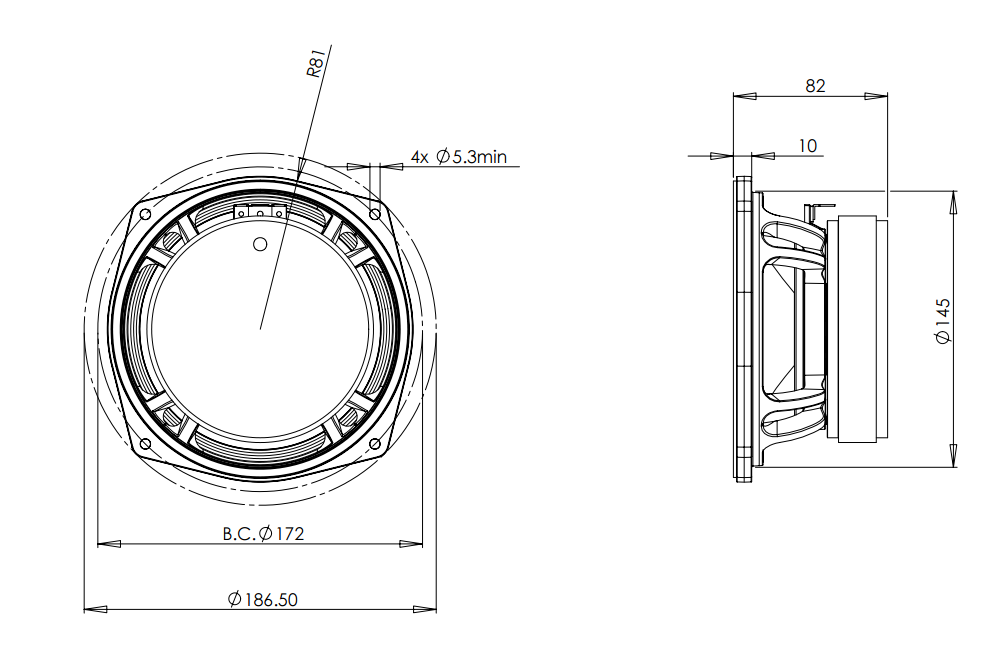

Mounting and Shipping Info
Overall Diameter
187 mm (7.36 in)
Bolt Circle Diameter
172 mm (6.77 in)
Baffle Cutout Diameter
145 mm (5.71 in)
Depth
82 mm (3.23 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Air Volume Occupied by Driver
0.8 dm³ (0.03 ft³)
Net Weight
2.35 kg (5.18 lb)
Shipping Units
1 pcs
Shipping Weight
2.55 kg (5.62 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06PS388
Cone
Gasket
Centering Shims
