Features
400W continuous power capacity
44 mm (1.7 in) copper voice coil
70 - 5000 Hz frequency resposnse
93 dB sensitivity
Specifications
Nominal Diameter
170 mm (6.69 in)
Nominal Impedance
8 Ω
Minimum Impedance
6 Ω
Nominal Power Handling
200 W
Continuous Power Handling
400 W
Sensitivity
93 dB
Frequency Range
70 - 5000 Hz
Voice Coil Diameter
44 mm (1.73 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
12 mm (0.49 in)
Magnetic Gap Depth
6 mm (0.24 in)
Flux Density
1.25 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
71 Hz
Re
5.3 Ω
Qes
0.34
Qms
12.5
Qts
0.33
Vas
7 dm³ (0.25 ft³)
Sd
132 cm² (20.46 sq²)
η0
0.7 %
Xmax
4.5 mm
Xvar
6 mm
Mms
18 g
Bl
11 Tm
Le
0.7 mH
EBP
209 Hz
Design
Surround Shape
Roll
Cone Shape
Radial
Magnet Material
Ferrite
Spider
Single
Pole Design
Straight Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
9 dm³ (0.32 ft³)
Recommended Tuning
70 Hz

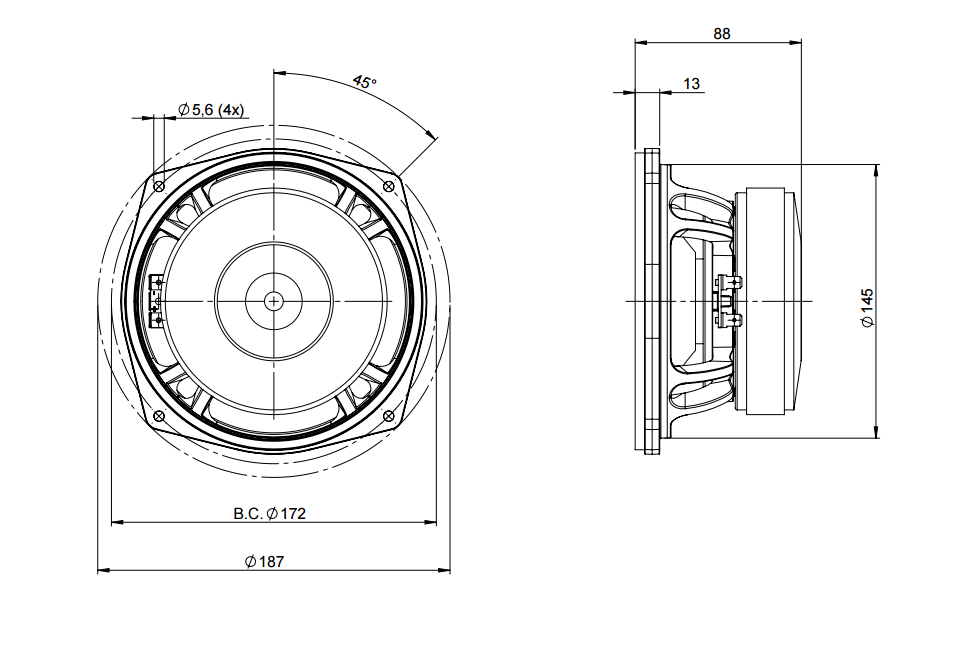

Mounting and Shipping Info
Overall Diameter
187 mm (7.36 in)
Bolt Circle Diameter
172 mm (6.77 in)
Baffle Cutout Diameter
145 mm (5.71 in)
Depth
88 mm (3.46 in)
Flange and Gasket Thickness
13 mm (0.51 in)
Air Volume Occupied by Driver
0.9 dm³ (0.03 ft³)
Net Weight
2.35 kg (5.18 lb)
Shipping Units
1 pcs
Shipping Weight
2.55 kg (5.62 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06PS448
Cone
Basket
Centering Shims
