Features
600 W continuous program power capacity
64 mm (2.5 in) copper voice coil
50 - 3000 Hz response
92 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Impedance
16 Ω
Minimum Impedance
13.5 Ω
Nominal Power Handling
300 W
Continuous Power Handling
600 W
Sensitivity
92 dB
Frequency Range
50 - 3000 Hz
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
20 mm (0.79 in)
Magnetic Gap Depth
10 mm (0.39 in)
Flux Density
0.9 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
53 Hz
Re
11.9 Ω
Qes
0.37
Qms
9.33
Qts
0.35
Vas
16.9 dm³ (0.6 ft³)
Sd
220 cm² (34.1 sq²)
η0
0.67 %
Xmax
7.5 mm
Xvar
9.5 mm
Mms
36 g
Bl
16.8 Tm
Le
2.9 mH
EBP
143 Hz
Design
Surround Shape
Roll
Cone Shape
Radial
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
16 dm³ (0.57 ft³)
Recommended Tuning
50 Hz

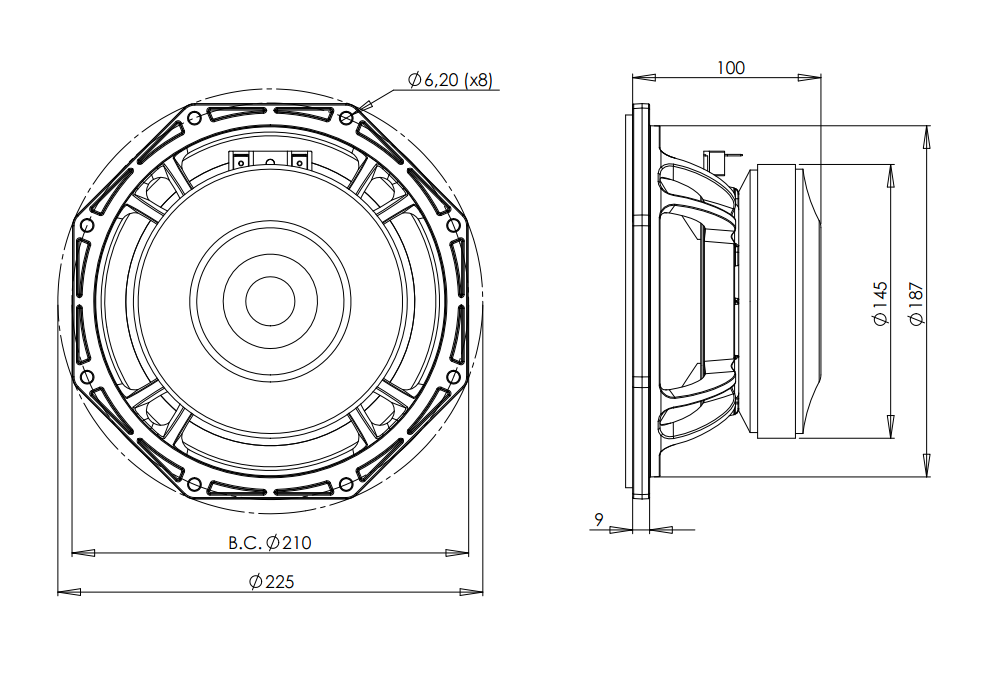

Mounting and Shipping Info
Overall Diameter
225 mm (8.86 in)
Bolt Circle Diameter
210 mm (8.3 in)
Baffle Cutout Diameter
187 mm (7.4 in)
Depth
100 mm (3.94 in)
Flange and Gasket Thickness
9 mm (0.37 in)
Air Volume Occupied by Driver
1.5 dm³ (0.05 ft³)
Net Weight
4 kg (8.82 lb)
Shipping Units
1 pcs
Shipping Weight
4.45 kg (9.81 lb)
Shipping Box
255x255x150 mm (10.04x10.04x5.91 in)
Service Kit
lf Recone Kit
RCK008FG6416
Cone
Basket
Centering Shims
