8MBX51
The MBX series mid-bass woofers from B&C Speakers offer acoustic designers a new range of high efficiency, wide bandwidth alternatives that are not currently available in the B&C range. These full-featured transducers incorporate lightweight neodymium motors, inside/outside wound copper clad aluminum wire voice coils, weatherproof impregnated paper cones, and a symmetrical inductance profile. The MBX Series is especially well suited for two-way loudspeaker enclosures.
Features
400 W continuous program power capacity
51 mm (2 in) aluminium voice coil
60 - 4000 Hz response
97 dB sensitivity
Neodymium ring magnet assembly
Aluminium ring allows a very low distortion figure
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Impedance
16 Ω
Minimum Impedance
11.2 Ω
Nominal Power Handling
200 W
Continuous Power Handling
400 W
Sensitivity
97 dB
Frequency Range
65 Hz - 4000 Hz
Voice Coil Diameter
51 mm (2 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
15 mm (0.59 in)
Magnetic Gap Depth
7 mm (0.28 in)
Flux Density
1.3 T
Woofer Cone Treatment
Waterproof Impregnated Cone
Parameters
Fs
68 Hz
Re
10.2 Ω
Qes
0.43
Qms
3.3
Qts
0.38
Vas
22 dm³ (0.78 ft³)
Sd
220 cm² (34.1 sq²)
η0
1.5 %
Xmax
6 mm
Xvar
5.5 mm
Mms
18.4 g
Bl
13.7 Tm
Le
0.65 mH
EBP
158 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Curvilinear
Magnet Material
Neodymium Ring
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
Waterproof Impregnated Cone
Recommended Enclosure
19 dm³ (0.67 ft³)
Recommended Tuning
63 Hz

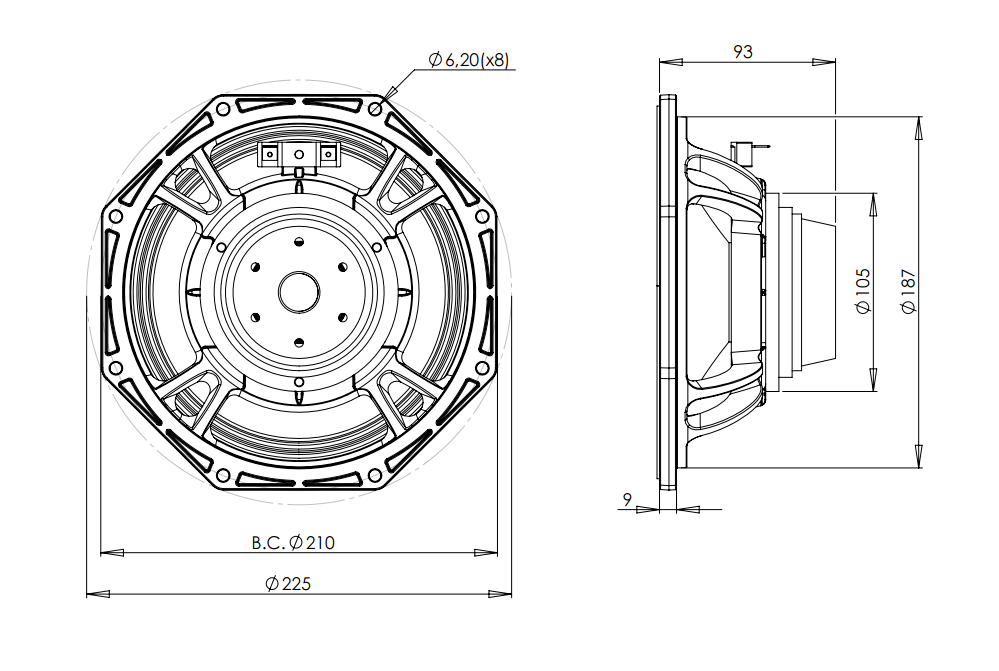

Mounting and Shipping Info
Overall Diameter
225 mm (8.86 in)
Bolt Circle Diameter
210 mm (8.27 in)
Baffle Cutout Diameter
187 mm (7.36 in)
Depth
93 mm (3.66 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Air Volume Occupied by Driver
1.1 dm³ (0.04 ft³)
Net Weight
1.8 kg (3.97 lb)
Shipping Units
1 pcs
Shipping Weight
2.25 kg (4.96 lb)
Shipping Box
255x255x150 mm (10.04x10.04x5.91 in)
Service Kit
lf Recone Kit
RCK008MBX5116
Cone
Gasket
Centering Shims
