Features
700 W continuous program power capacity
64 mm (2.5 in) copper voice coil
80 - 4000 Hz response
97 dB sensitivity
Neodymium inside slug magnet assembly
Shorting copper cap for extended HF response
Ventilated voice coil gap for reduced power compression
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Impedance
16 Ω
Minimum Impedance
14.4 Ω
Nominal Power Handling
350 W
Continuous Power Handling
700 W
Sensitivity
97 dB
Frequency Range
80 - 4000 Hz
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
14 mm (0.55 in)
Magnetic Gap Depth
8 mm (0.31 in)
Flux Density
1.25 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
73 Hz
Re
11.2 Ω
Qes
0.25
Qms
6.8
Qts
0.24
Vas
11.8 dm³ (0.42 ft³)
Sd
220 cm² (34.1 sq²)
η0
1.8 %
Xmax
4.5 mm
Xvar
5.5 mm
Mms
27 g
Bl
24 Tm
Le
1.03 mH
EBP
292 Hz
Design
Surround Shape
Double Roll
Cone Shape
Exponential
Magnet Material
Neodymium Inside Slug
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side
Recommended Enclosure
10 dm³ (0.35 ft³)
Recommended Tuning
85 Hz

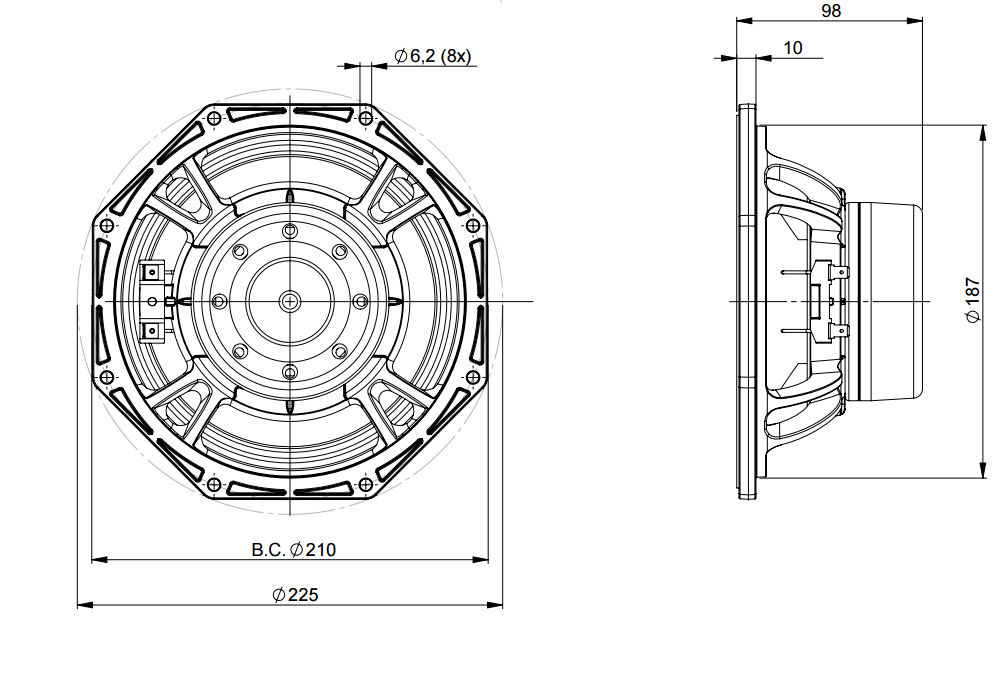

Mounting and Shipping Info
Overall Diameter
225 mm (8.8 in)
Bolt Circle Diameter
210 mm (8.3 in)
Baffle Cutout Diameter
187 mm (7.4 in)
Depth
95 mm (3.74 in)
Flange and Gasket Thickness
10 mm (0.39 in)
Air Volume Occupied by Driver
1.5 dm³ (0.05 ft³)
Net Weight
2.6 kg (5.73 lb)
Shipping Units
1 pcs
Shipping Weight
3.05 kg (6.72 lb)
Shipping Box
255x255x150 mm (10.04x10.04x5.91 in)
Service Kit
lf Recone Kit
RCK008NDL6416
Cone
Basket
Centering Shims
