8NSM64
NEW
For simplified cabinet assembly and efficient thermal transfer to the air, our NSM series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.
Available exclusively with 6.3+4.8 mm fast-on terminal tab
Available exclusively with 6.3+4.8 mm fast-on terminal tab
Features
500 W continuous program power capacity
64 mm (2.5 in) aluminium voice coil
245 - 2000 Hz response
100 dB sensitivity
Ideal for Direct Radiation and Horn Loaded Midrange application
Specifications
Nominal Diameter
200 mm (8 in)
Nominal Impedance
16 Ω
Minimum Impedance
14.5 Ω
Nominal Power Handling
250 W
Continuous Power Handling
500 W
Sensitivity
100 dB
Frequency Range
245 - 2000 Hz
Voice Coil Diameter
64 mm (2.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
14.2 mm (0.56 in)
Magnetic Gap Depth
10 mm (0.39 in)
Flux Density
1.55 T
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
245 Hz
Re
10.9 Ω
Qes
0.45
Qms
10.2
Qts
0.43
Vas
1.5 dm³ (0.05 ft³)
Sd
220 cm² (34.1 sq²)
η0
4.7 %
Xmax
2 mm
Xvar
1.7 mm
Mms
19 g
Bl
28 Tm
Le
1.9 mH
EBP
544 Hz
Design
Surround Shape
Double Roll
Cone Shape
Radial
Magnet Material
Neodymium Ring
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
WP Waterproof Front Side

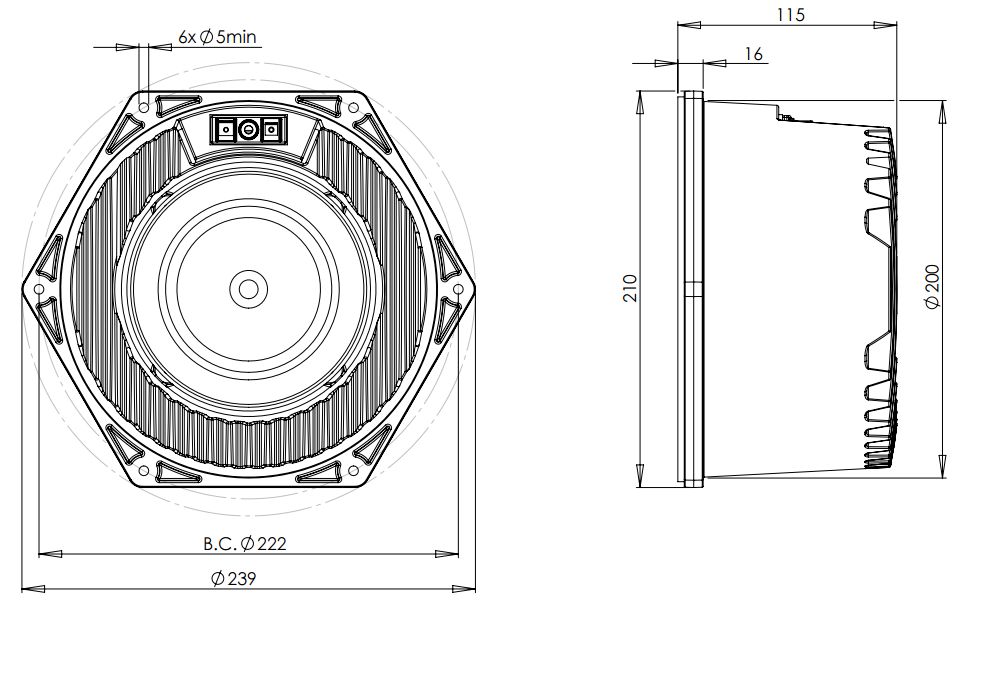

Mounting and Shipping Info
Overall Diameter
239 mm (9.41 in)
Bolt Circle Diameter
222 mm (8.74 in)
Baffle Cutout Diameter
200 mm (7.87 in)
Depth
115 mm (4.53 in)
Flange and Gasket Thickness
16 mm (0.63 in)
Air Volume Occupied by Driver
3.5 dm³ (0.12 ft³)
Net Weight
4.55 kg (10.03 lb)
Shipping Units
1 pcs
Shipping Weight
5.15 kg (11.35 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK008NSM6416
Cone
Basket
Centering Shims
