Features
800 W continuous program power capacity
76 mm (3 in) aluminium voice coil
50 - 2500 Hz response
98 dB sensitivity
Alunimium demodulating ring allows a very low distortion figure
Specifications
Nominal Diameter
250 mm (10 in)
Nominal Impedance
8 Ω
Minimum Impedance
6 Ω
Nominal Power Handling
400 W
Continuous Power Handling
800 W
Sensitivity
98 dB
Frequency Range
50 Hz - 2500 Hz
Voice Coil Diameter
76 mm (3 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
20 mm (0.79 in)
Magnetic Gap Depth
8 mm (0.33 in)
Flux Density
1.1 T
Woofer Cone Treatment
None
Parameters
Fs
52 Hz
Re
4.8 Ω
Qes
0.2
Qms
3.4
Qts
0.19
Vas
31 dm³ (1.09 ft³)
Sd
320 cm² (49.6 sq²)
η0
2.2 %
Xmax
6 mm
Xvar
7 mm
Mms
43 g
Bl
18.4 Tm
Le
0.32 mH
EBP
260 Hz
Design
Surround Shape
Double Roll
Cone Shape
Radial
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
None

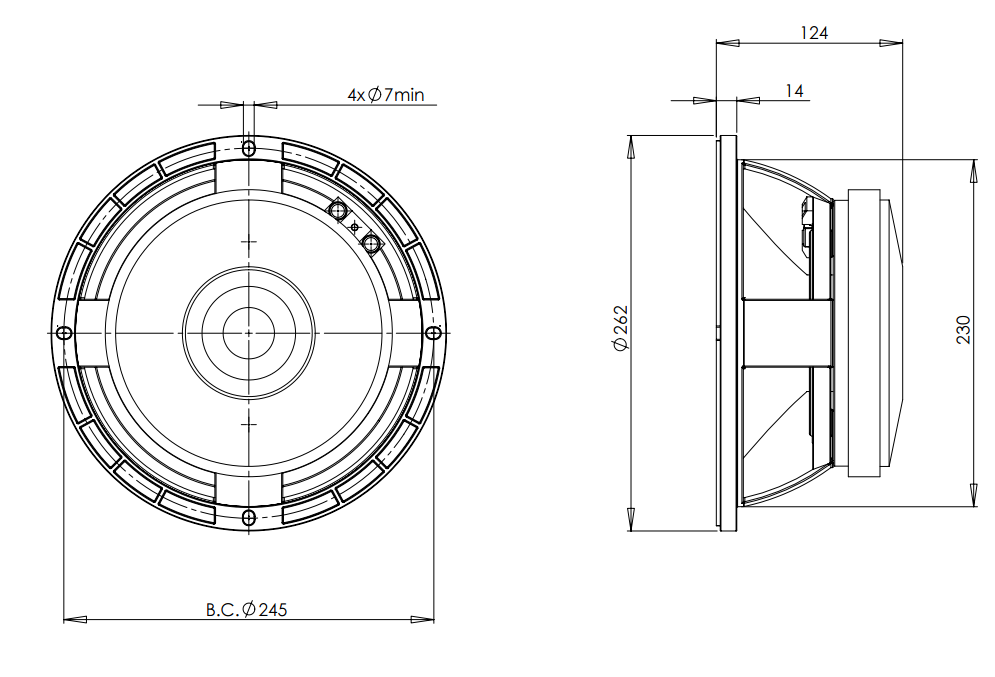

Mounting and Shipping Info
Overall Diameter
262 mm (10.31 in)
Bolt Circle Diameter
245 mm (9.65 in)
Baffle Cutout Diameter
230 mm (9.06 in)
Depth
124 mm (4.88 in)
Flange and Gasket Thickness
14 mm (0.55 in)
Air Volume Occupied by Driver
2.6 dm³ (0.09 ft³)
Net Weight
7.4 kg (16.31 lb)
Shipping Units
1 pcs
Shipping Weight
8 kg (17.64 lb)
Shipping Box
295x314x175 mm (11.61x12.36x6.89 in)
Service Kit
lf Recone Kit
RCK10PLB768
Cone
Gasket
Centering Shims
