Features
1400 W continuous program power capacity
100 mm (4 in) copper voice coil
35 - 2000 Hz response
97 dB sensitivity
Double silicone spider with optimized compliance
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.8 Ω
Nominal Power Handling
700 W
Continuous Power Handling
1400 W
Sensitivity
97 dB
Frequency Range
35 - 2000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
21 mm (0.83 in)
Magnetic Gap Depth
11 mm (0.4 in)
Flux Density
1.15 T
Woofer Cone Treatment
None
Parameters
Fs
37 Hz
Re
5 Ω
Qes
0.21
Qms
6.6
Qts
0.2
Vas
154 dm³ (5.4 ft³)
Sd
855 cm² (132.5 sq²)
η0
3.6 %
Xmax
7 mm
Xvar
7 mm
Mms
121 g
Bl
26.8 Tm
Le
1.7 mH
EBP
176 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
None
Recommended Enclosure
80 dm³ (2.83 ft³)
Recommended Tuning
50 Hz

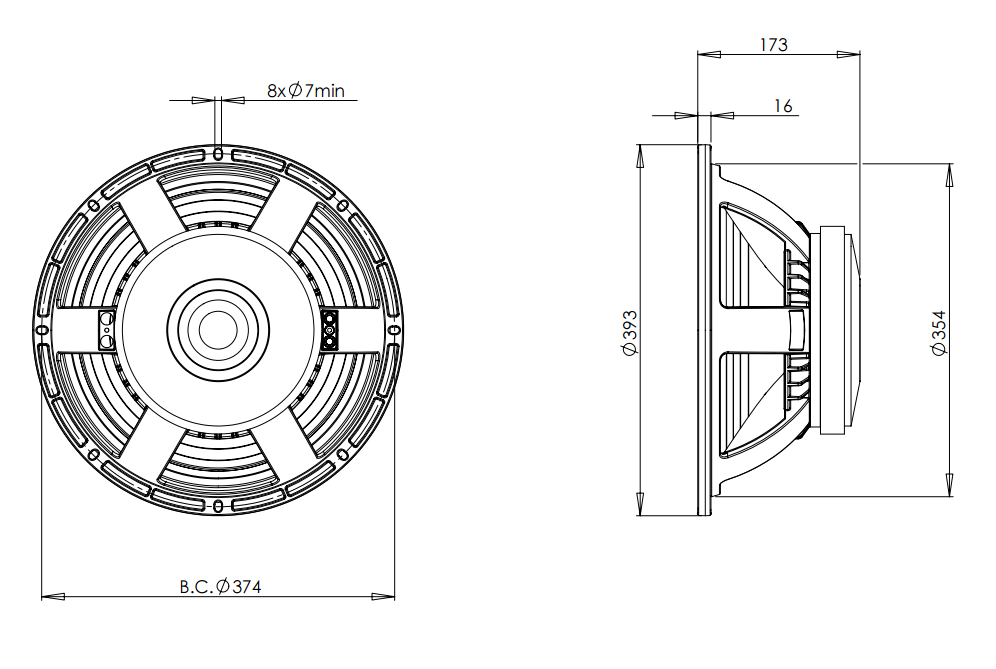

Mounting and Shipping Info
Overall Diameter
393 mm (15.5 in)
Bolt Circle Diameter
374 mm (14.7 in)
Baffle Cutout Diameter
354 mm (13.9 in)
Depth
173 mm (6.8 in)
Flange and Gasket Thickness
16 mm (0.62 in)
Net Weight
11.8 kg (26.01 lb)
Shipping Units
1 pcs
Shipping Weight
13.1 kg (28.88 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15PL1008
Cone
Basket
Centering Shims
