15RBX100
The B&C 15RBX100 anchors our ferrite subwoofer line, and features an all new FEA optimized motor structure. The 25mm high, 4” (100mm) diameter copper wire voice coil is combined with a laminated double silicone spider, water resistant curvilinear cone and triple roll surround, for even more excursion and linearity.
The corrosion resistant motor structure incorporates an aluminum demodulation ring that effectively controls inductive rise as well as harmonic and intermodulation distortion. This subwoofer can be used for a wide variety of applications, including compact vented enclosures.
Features
2000 W continuous program power capacity
100 mm (4 in) copper voice coil
40 - 3000 Hz response
95 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Specifications
Nominal Diameter
380 mm (15 in)
Nominal Impedance
8 Ω
Minimum Impedance
6.4 Ω
Nominal Power Handling
1000 W
Continuous Power Handling
2000 W
Sensitivity
95 dB
Frequency Range
40 Hz - 3000 Hz
Voice Coil Diameter
100 mm (4 in)
Winding Material
Copper
Former Material
Glass Fibre
Winding Depth
25 mm (1 in)
Magnetic Gap Depth
11 mm (0.43 in)
Flux Density
1.1 T
Woofer Cone Treatment
TWP Waterproof Both Sides
Parameters
Fs
44 Hz
Re
5.3 Ω
Qes
0.4
Qms
5.65
Qts
0.38
Vas
100 dm³ (3.53 ft³)
Sd
908 cm² (140.74 sq²)
η0
2 %
Xmax
9 mm
Xvar
10 mm
Mms
154 g
Bl
24 Tm
Le
1.2 mH
EBP
110 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Curvilinear
Magnet Material
Ferrite
Spider
Double Silicone
Pole Design
T-Pole
Woofer Cone Treatment
TWP Waterproof Both Sides
Recommended Enclosure
85 dm³ (3 ft³)
Recommended Tuning
45 Hz

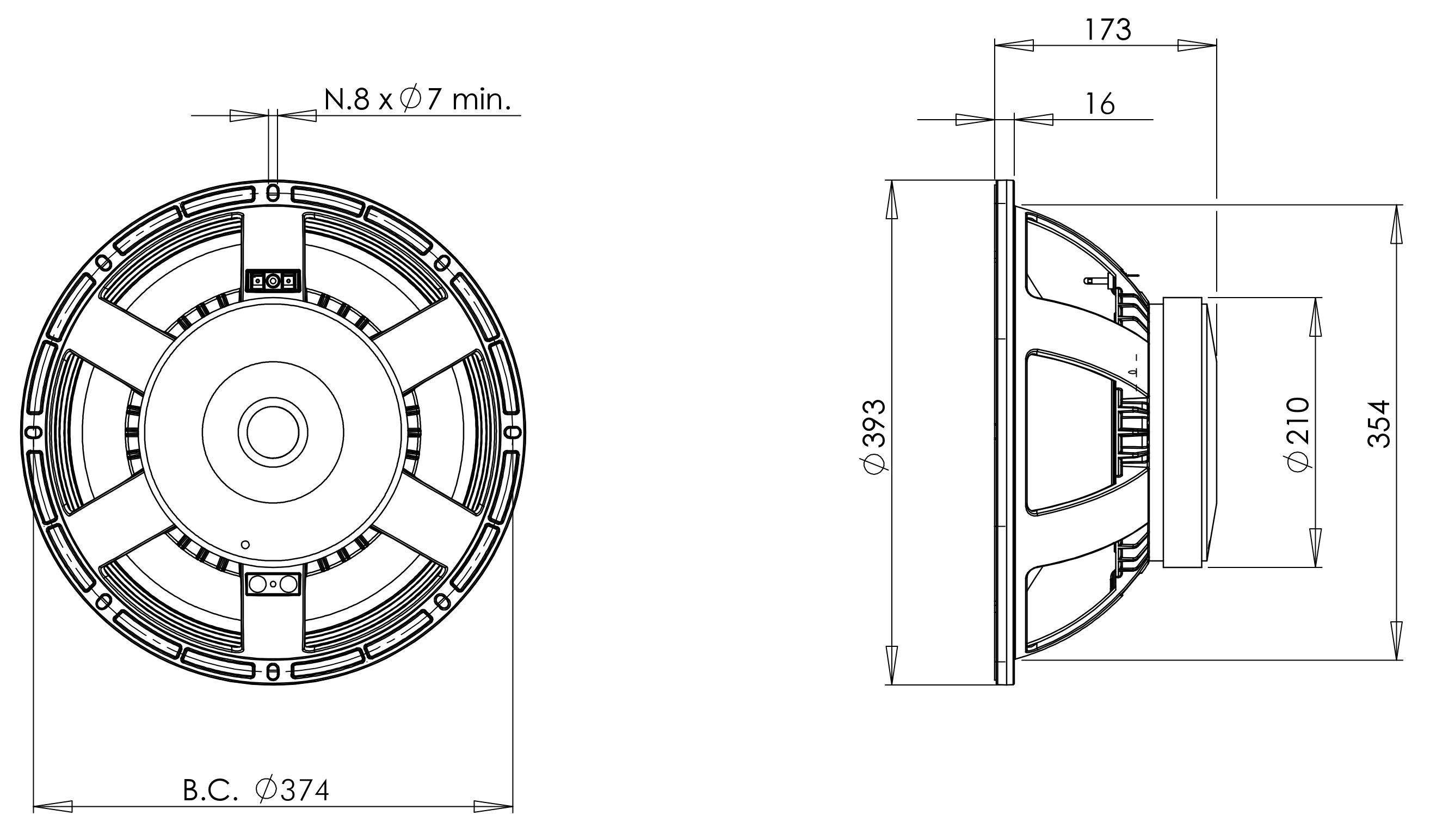

Mounting and Shipping Info
Overall Diameter
393 mm (15.47 in)
Bolt Circle Diameter
374 mm (14.72 in)
Baffle Cutout Diameter
354 mm (13.94 in)
Depth
173 mm (6.81 in)
Flange and Gasket Thickness
16 mm (0.63 in)
Air Volume Occupied by Driver
5 dm³ (0.18 ft³)
Net Weight
10.6 kg (23.37 lb)
Shipping Units
1 pcs
Shipping Weight
11.9 kg (26.24 lb)
Shipping Box
425x425x224 mm (16.73x16.73x8.82 in)
Service Kit
lf Recone Kit
RCK15RBX1008
Cone
Gasket
Centering Shims
