De200%2000
Continuous Power Handling
Voice Coil Diameter
Diaphragm Material
Throat Diameter




Key Features

  • 100 W continuous program power capacity
  • 1" horn throat diameter
  • 44 mm (1.7 in) aluminium voice coil
  • Titanium diaphragm
  • 1000 - 18000 Hz response
  • 106 dB sensitivity

Specifications1

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance16 Ω
  • Minimum Impedance10.9 Ω
  • Nominal Power Handling250 W
  • Continuous Power Handling3100 W
  • Sensitivity4106.0 dB
  • Frequency Range1.0 - 18.0 kHz
  • Recommended Crossover51.6 kHz
  • Voice Coil Diameter44 mm (1.7 in)
  • Winding MaterialAluminium
  • Inductance0.14 mH
  • Diaphragm MaterialTitanium
  • Flux Density1.5 T
  • Magnet MaterialFerrite

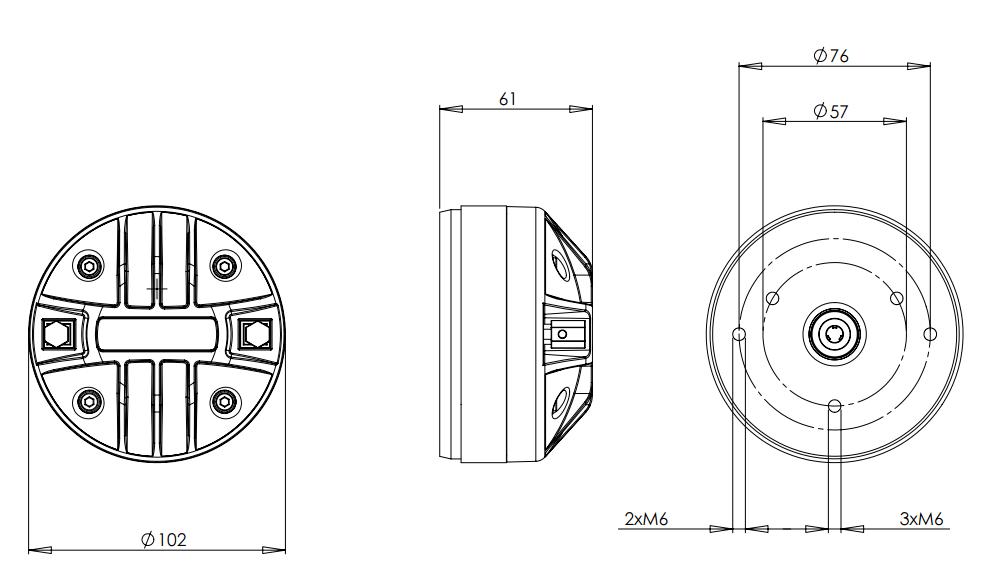

Mounting And Shipping Info

  • Two M6 holes 180° on 76 mm (3 in) diameter
  • Three M6 holes 120° on 57 mm (2.2 in) diameter
  • Overall Diameter102 mm (4.0 in)
  • Depth61 mm (2.4 in)
  • Net Weight1.7 kg (3.7 lb)
  • Shipping Units8
  • Shipping Weight14.6 kg (32.1 lb)
  • Shipping Box230x230x160 mm (9x9x6.3 in)

Replacement Diaphragm

  • MMD20016
  • Driver mounted on B&C ME 45 horn.
  • 2 hour test made with continuous pink noise signal (6 dB crest factor) within the range from the recommended crossover frequency to 20 kHz. Power calculated on rated minimum impedance.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS voltage is set to 4 V for 16 ohm Nominal Impedance
  • 12 dB/oct. or higher slope high-pass filter.
