Features
240 W continuous program power capacity
38 mm (1.5 in) aluminium voice coil
150 - 6000 Hz response
95 dB sensitivity
Specifications
Nominal Diameter
170 mm (6.5 in)
Nominal Impedance
16 Ω
Minimum Impedance
13.3 Ω
Nominal Power Handling
120 W
Continuous Power Handling
240 W
Sensitivity
95 dB
Frequency Range
150 Hz - 6000 Hz
Voice Coil Diameter
38 mm (1.5 in)
Winding Material
Aluminium
Former Material
Glass Fibre
Winding Depth
9 mm (0.35 in)
Magnetic Gap Depth
6 mm (0.25 in)
Flux Density
1.4 T
Woofer Cone Treatment
None
Parameters
Fs
150 Hz
Re
11.7 Ω
Qes
0.61
Qms
2.8
Qts
0.5
Vas
2.3 dm³ (0.08 ft³)
Sd
132 cm² (20.5 sq²)
η0
1.4 %
Xmax
3.5 mm
Xvar
2 mm
Mms
11 g
Bl
14.5 Tm
Le
0.4 mH
EBP
246 Hz
Design
Surround Shape
Triple Roll
Cone Shape
Exponential
Magnet Material
Ferrite
Spider
Single
Pole Design
T-Pole
Woofer Cone Treatment
None

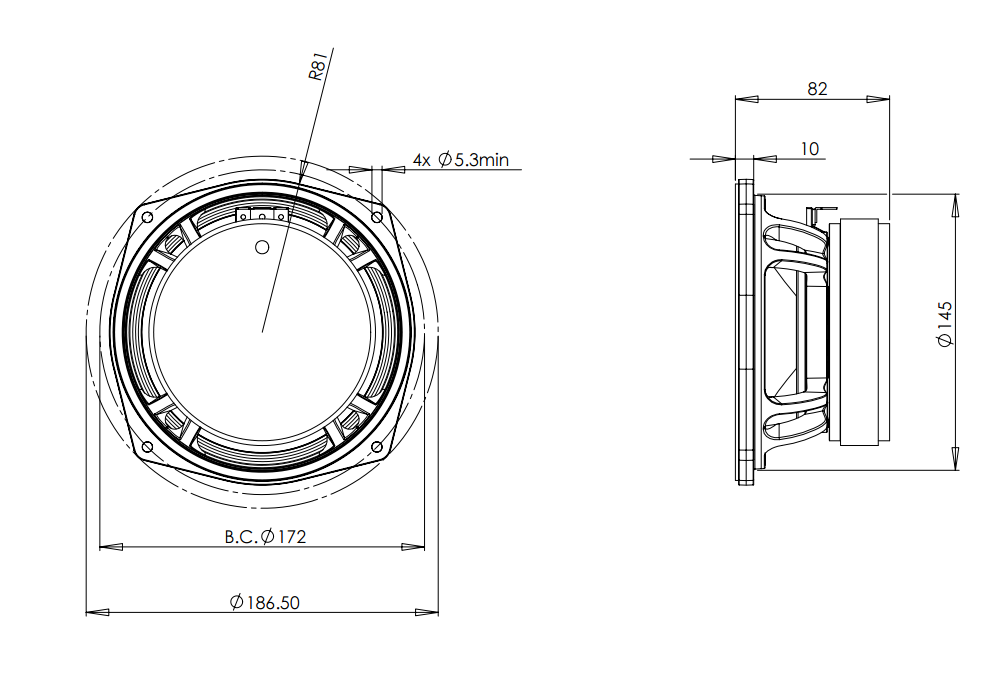

Mounting and Shipping Info
Overall Diameter
187 mm (7.4 in)
Bolt Circle Diameter
172 mm (6.7 in)
Baffle Cutout Diameter
145 mm (5.7 in)
Depth
82 mm (3.2 in)
Flange and Gasket Thickness
9 mm (0.35 in)
Air Volume Occupied by Driver
0.8 dm³ (0.03 ft³)
Net Weight
2.3 kg (5.07 lb)
Shipping Units
1 pcs
Shipping Weight
2.5 kg (5.51 lb)
Shipping Box
210x210x125 mm (8.27x8.27x4.92 in)
Service Kit
lf Recone Kit
RCK06MD3816
Cone
Gasket
Centering Shims
